Pirtek Food & Beverage range

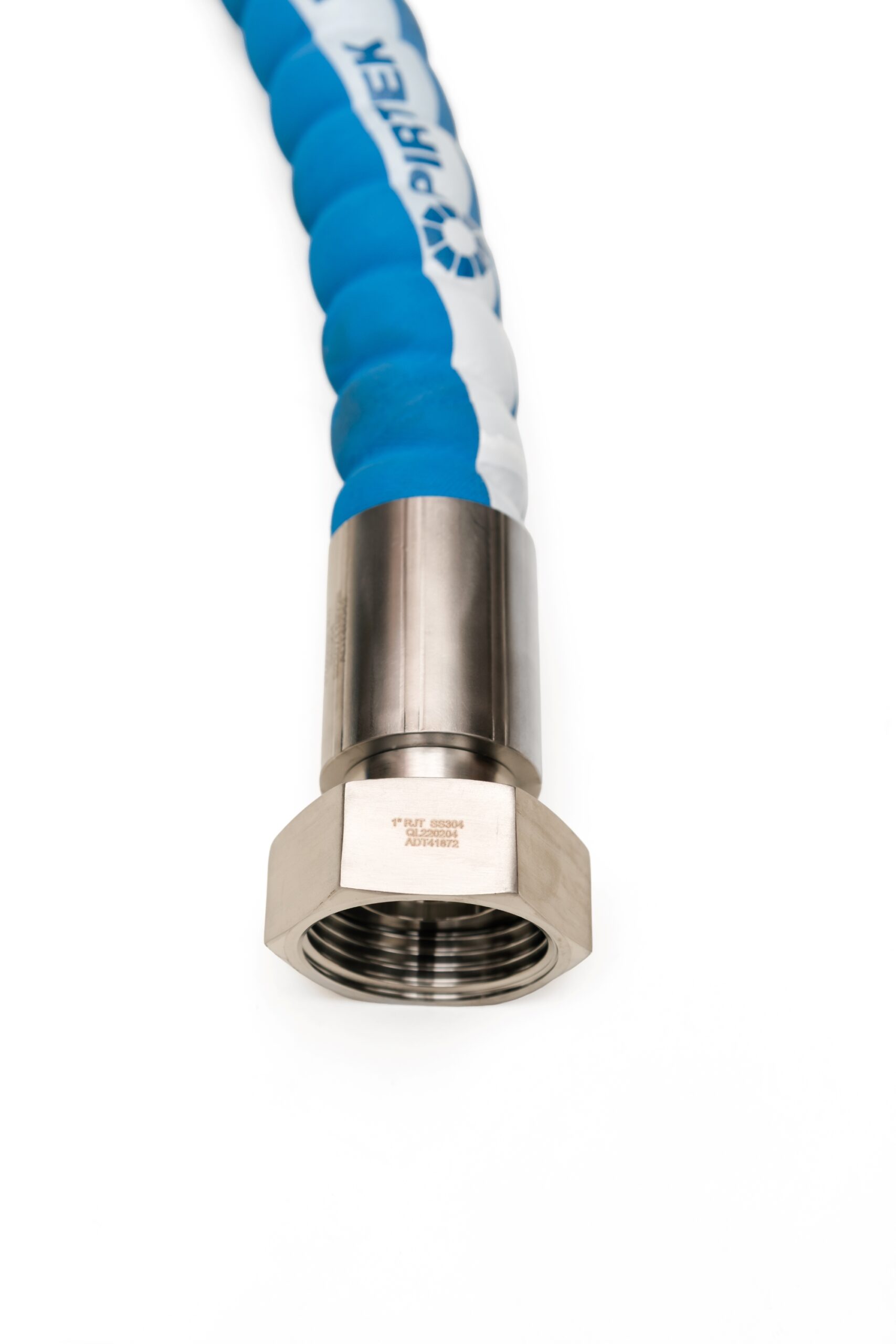

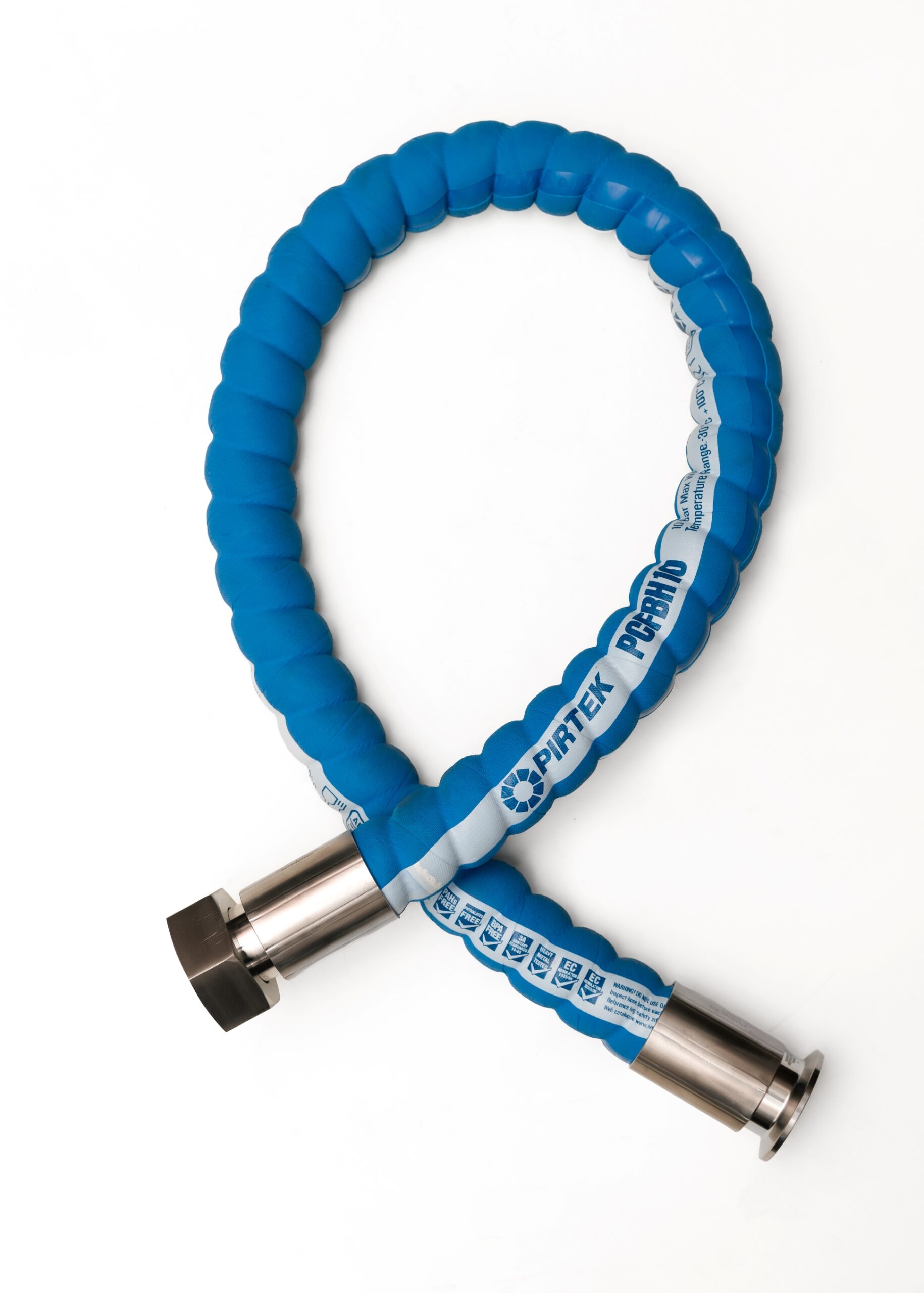

Corrugated Food & Beverage Hose - up to 10 bar

Our specialist hose is excellent for the transfer of oily products in full suction and discharge applications.

We stock a wide range of hygienic hoses and fittings at each of our Pirtek centres, perfect for Food & Beverage or Pharmaceutical applications and manufactured to industry specifications to ensure full compliance. Our technicians are trained to custom make hoses for any application, so if you can’t find exactly what you need we’ll happily work with you to design a clean, safe and efficient solution. All hoses are hydrostatically tested and as standard and they come with a test certificate. Next day delivery available on thousands of products, including food-grade fittings of any type.

Standards: Reg. EC 1935/04 and CE 2023/06. Phthalates free. PAHs free (acc. to ZEK 01.4-08 Cat. 1). Bisphenol A free. Heavy metal tested. FDA tit.21 art.177.2600 aqueous and fatty foods. 3-A Sanitary Standards n°18-03 class II. BfR XXI Cat.2 foods. D.M. 21/03/73 aqueous, fatty foods and alcohol up to 96°

– Built on special stainless steel mandrels for perfect cleanliness

Our hose also provides:

Maximum flexibility

Ultra-smooth Internal diameter

Abrasion resistant cover

Microbe resistant liner

Vegan Friendly

Total Food Hose ideal for all food products

Application: hardwall corrugated hose for suction and delivery of many food products as olive oil, wine, beer, fruit juices, fatty foods, milk and alcohol up to 96°.
Construction: Tube – white, smooth, food quality, taste free and odourless synthetic rubber. 100% phthalates free.
Cover: blue, corrugated (wrapped finish), synthetic rubber, weathering and ozone resistant.
Temperature Range: from -30°C (-22°F) to +100°C (212°F).
Reinforcement: high strength synthetic cord and embedded helix wire

Technical specs

Part No. ID Inches ID mm WP bar WP PSI BP Bar BP PSI Weight kg/m MBR Inches MBR mm
PCFBH10-25 1 25 10 150 30 450 0.65 0.3 75
PCFBH10-38 1.5 38 10 150 30 450 1.04 4.5 115
PCFBH10-51 2 51 10 150 30 450 1.45 5.9 150
PCFBH10-63 2.5 63.5 10 150 30 450 1.75 7.7 195
PCFBH10-76 3 76 10 150 30 450 2.17 8.9 225
PCFBH10-102 4 102 10 150 30 450 2.98 13.8 350

All hoses have a maximum length of 60m (200ft) and all parts 0.9 bar vacuum



Looking to learn more? Contact our Food & Beverage experts to learn more about our range of specialist hygienic products and services

Close monitoring to minimise downtime

Entrusting your hose management to us means we’ll closely monitor your hose usage and tailor a repair and replacement plan that keeps your production lines in optimum condition. This level of monitoring, coupled with our technicians’ expertise, can dramatically reduce the risk of contamination to your products and downtime to your business.

Total Hose Management
