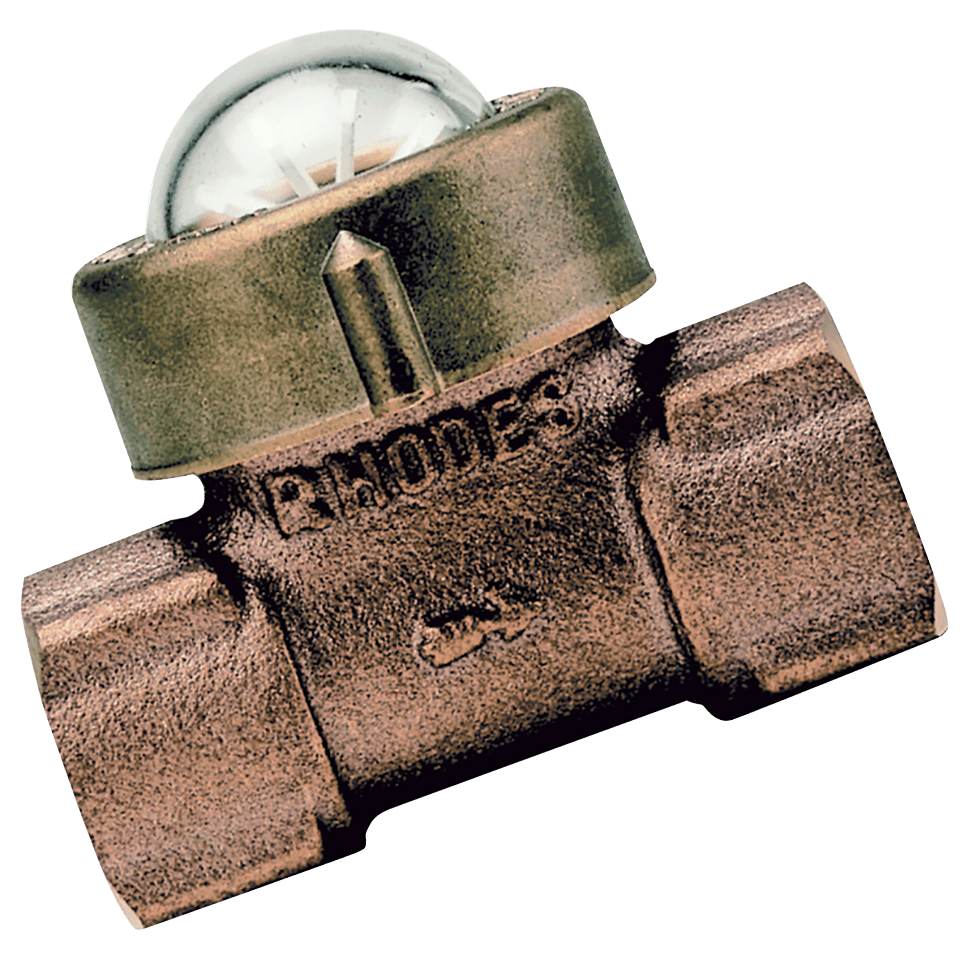

400 Series – Straight Through Sight Flow Indicator with Spinner/Ball

Valves Sight Glasses & Flow Indicators
With Spinner, Gun Metal
  • Technical specs
Part number Variation name Thread size Minimum flow rate in litres per hour Maximum flow rate in litres per hour
RHO-FIG-170300-1 With Spinner, Gun Metal 1/4" BSPT 30 200
RHO-FIG-170300-2 With Spinner, Gun Metal 1/4" BSPP 30 200
RHO-FIG-170305-1 With Spinner, Gun Metal 3/8" BSPT 50 450
RHO-FIG-170305-2 With Spinner, Gun Metal 3/8" BSPP 50 450
RHO-FIG-170310-1 With Spinner, Gun Metal 1/2" BSPT 60 600
RHO-FIG-170310-2 With Spinner, Gun Metal 1/2" BSPP 60 600
RHO-FIG-170315-1 With Spinner, Gun Metal 3/4" BSPT 120 1600
RHO-FIG-170315-2 With Spinner, Gun Metal 3/4" BSPP 120 1600
RHO-FIG-170320-1 With Spinner, Gun Metal 1" BSPT 300 1600
RHO-FIG-170320-2 With Spinner, Gun Metal 1" BSPP 300 1600
RHO-FIG-176600-1 With Ball, Gun Metal 1/4" BSPT 30 200
RHO-FIG-176600-2 With Ball, Gun Metal 1/4" BSPP 30 200
RHO-FIG-176605-1 With Ball, Gun Metal 3/8" BSPT 50 450
RHO-FIG-176610-1 With Ball, Gun Metal 1/2" BSPT 60 600
RHO-FIG-176610-2 With Ball, Gun Metal 1/2" BSPP 60 600
RHO-FIG-176615-1 With Ball, Gun Metal 3/4" BSPT 120 1600
RHO-FIG-176615-2 With Ball, Gun Metal 3/4" BSPP 120 1600
RHO-FIG-176615-3 With Ball, Gun Metal 3/4" NPT 120 1600
RHO-FIG-176620-1 With Ball, Gun Metal 1" BSPT 300 1600
RHO-FIG-176620-2 With Ball, Gun Metal 1" BSPP 300 1600
RHO-FIS-140300-1 With Spinner, Stainless Steel 1/4" BSPT 30 200
RHO-FIS-140305-1 With Spinner, Stainless Steel 3/8" BSPT 50 450
RHO-FIS-140305-2 With Spinner, Stainless Steel 3/8" BSPP 50 450
RHO-FIS-140310-1 With Spinner, Stainless Steel 1/2" BSPT 60 600
RHO-FIS-140310-2 With Spinner, Stainless Steel 1/2" BSPP 60 600
RHO-FIS-140315-1 With Spinner, Stainless Steel 3/4" BSPT 120 1600
RHO-FIS-140320-1 With Spinner, Stainless Steel 1" BSPT 300 1600
RHO-FIS-140320-2 With Spinner, Stainless Steel 1" BSPP 300 1600
