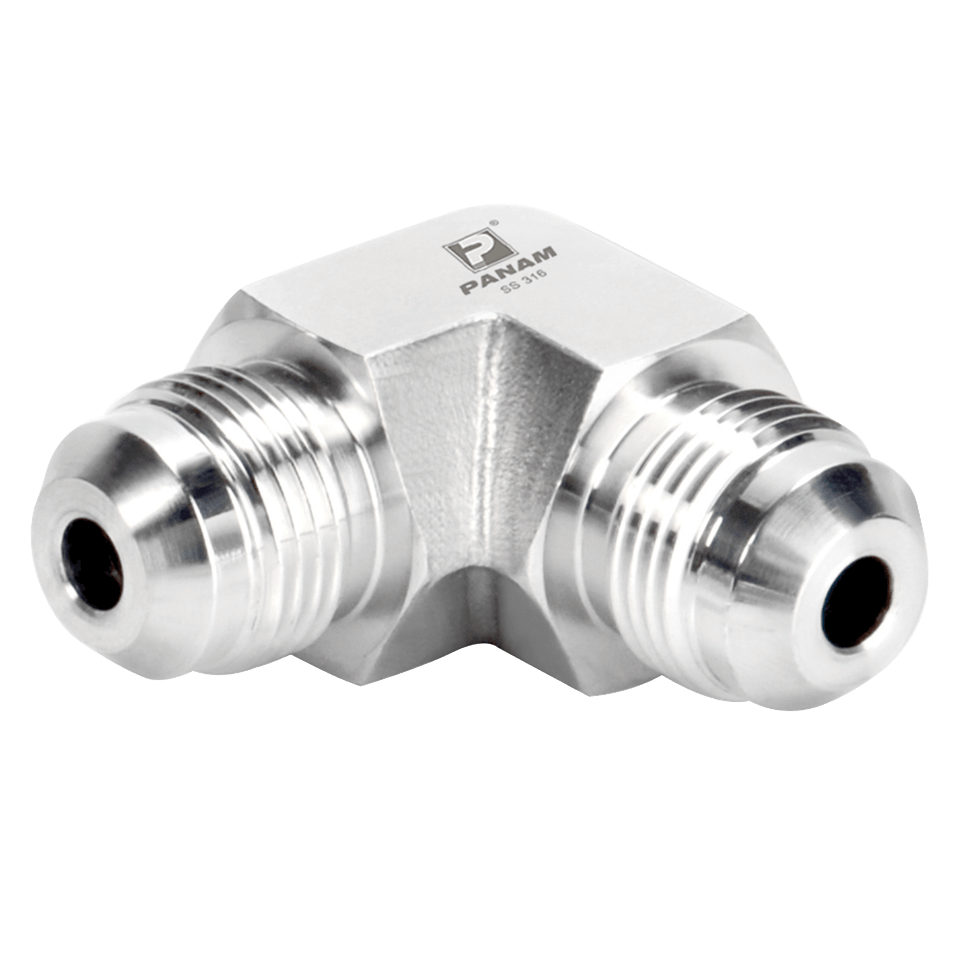

Fixed Elbows

UNF
  • Technical specs
Part number Variation name Thread size
206BM12 UNF 3/4"-16
206BM20 UNF 1.1/16"-12
206BM22 UNF 1.3/16"-12
206BM25 UNF 1.5/16"-12
206BM32 UNF 1.5/8"-12
206BM38 UNF 1.7/8"-12
206BM6 UNF 7/16"-20
206BM8 UNF 1/2"-20
206M10R12 UNF Male x BSPT Male 9/16"-18
206M10R14 UNF Male x BSPT Male 9/16"-18
206M10R18 UNF Male x BSPT Male 9/16"-18
206M10R38 UNF Male x BSPT Male 9/16"-18
206M12R12 UNF Male x BSPT Male 3/4"-16
206M12R14 UNF Male x BSPT Male 3/4"-16
206M12R34 UNF Male x BSPT Male 3/4"-16
206M12R38 UNF Male x BSPT Male 3/4"-16
206M16R12 UNF Male x BSPT Male 7/8"-14
206M16R34 UNF Male x BSPT Male 7/8"-14
206M16R38 UNF Male x BSPT Male 7/8"-14
206M18R1 UNF Male x BSPT Male 1.1/16"-12
206M18R34 UNF Male x BSPT Male 1.1/16"-12
206M22R34 UNF Male x BSPT Male 1.3/16"-12
206M25R1 UNF Male x BSPT Male 1.5/16"-12
206M25R34 UNF Male x BSPT Male 1.5/16"-12
206M32R1 UNF Male x BSPT Male 1.5/8"-12
206M32R114 UNF Male x BSPT Male 1.5/8"-12
206M38R112 UNF Male x BSPT Male 1.7/8"-12
206M38R114 UNF Male x BSPT Male 1.7/8"-12
206M6R12 UNF Male x BSPT Male 7/16"-20
206M6R14 UNF Male x BSPT Male 7/16"-20
206M6R18 UNF Male x BSPT Male 7/16"-20
206M8R14 UNF Male x BSPT Male 1/2"-20
206M8R18 UNF Male x BSPT Male 1/2"-20
285M10N12 UNF Male x 45° NPT Male 9/16"-18
285M12N18 UNF Male x 45° NPT Male 3/4"-16
285M16N14 UNF Male x 45° NPT Male 7/8"-14
285M18N18 UNF Male x 45° NPT Male 1.1/16"-12
285M22N14 UNF Male x 45° NPT Male 1.3/16"-12
285M25N38 UNF Male x 45° NPT Male 1.5/16"-12
285M32N12 UNF Male x 45° NPT Male 1.5/8"-12
285M38N14 UNF Male x 45° NPT Male 1.7/8"-12
285M6N18 UNF Male x 45° NPT Male 7/16"-20
285M8N14 UNF Male x 45° NPT Male 1/2"-20
