1/4″ High Pressure Quick Release Nozzles
Your item(s) have been added to your shopping basket

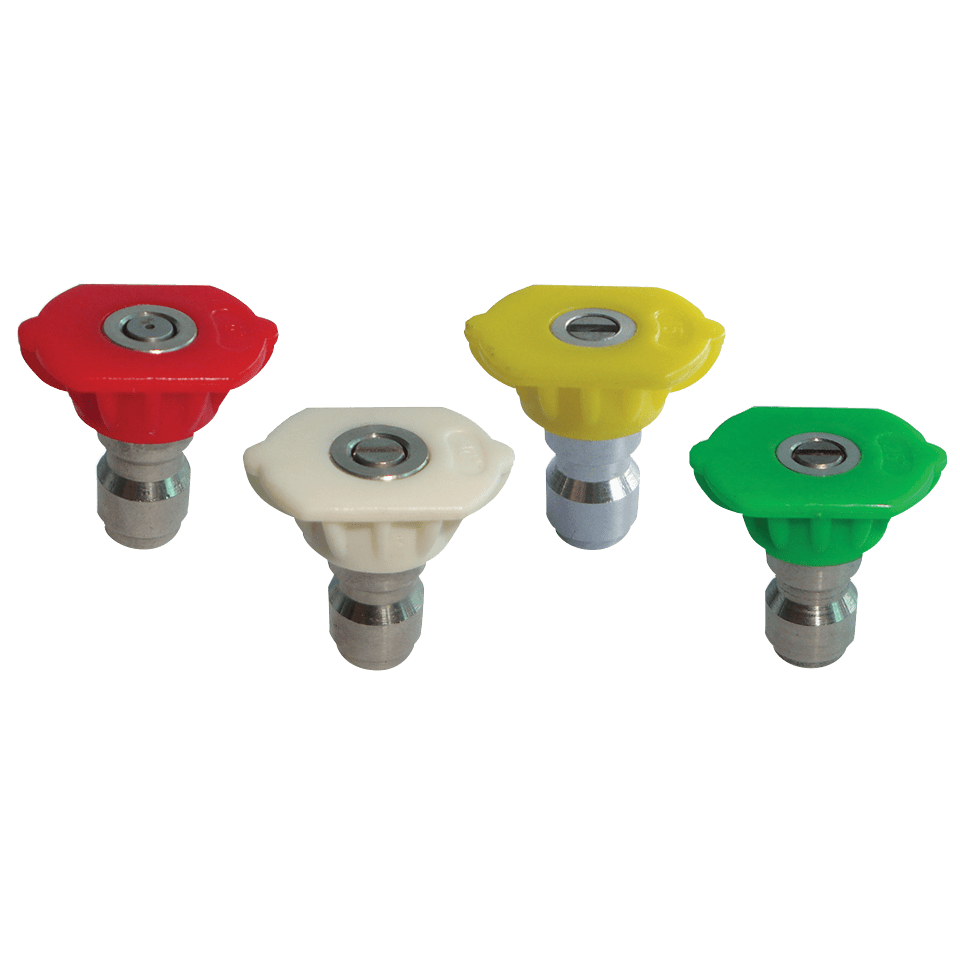

1/4″ High Pressure Quick Release Nozzles
- Technical specs
| Part number | Variation name | Spray pattern in degrees | Flow rate in litres per minute at 50 bar | Flow rate in litres per minute at 100 bar | Flow rate in litres per minute at 150bar | Colour |
|---|---|---|---|---|---|---|
| A00050 | A Series Nozzles | 0° | 8 | 11.3 | 13.8 | Red |
| A00055 | A Series Nozzles | 0° | 8.7 | 12.4 | 15.2 | Red |
| A00060 | A Series Nozzles | 0° | 9.6 | 13.6 | 16.7 | Red |
| A15050 | A Series Nozzles | 15° | 8 | 11.3 | 13.8 | Yellow |
| A15055 | A Series Nozzles | 15° | 8.7 | 12.4 | 15.2 | Yellow |
| A15060 | A Series Nozzles | 15° | 9.6 | 13.6 | 16.7 | Yellow |
| A25050 | A Series Nozzles | 25° | 8 | 11.3 | 13.8 | Green |
| A25055 | A Series Nozzles | 25° | 8.7 | 12.4 | 15.2 | Green |
| A25060 | A Series Nozzles | 25° | 9.6 | 13.6 | 16.7 | Green |
| A40050 | A Series Nozzles | 40° | 8 | 11.3 | 13.8 | White |
| A40055 | A Series Nozzles | 40° | 8.7 | 12.4 | 15.2 | White |
| A40060 | A Series Nozzles | 40° | 9.6 | 13.6 | 16.7 | White |
