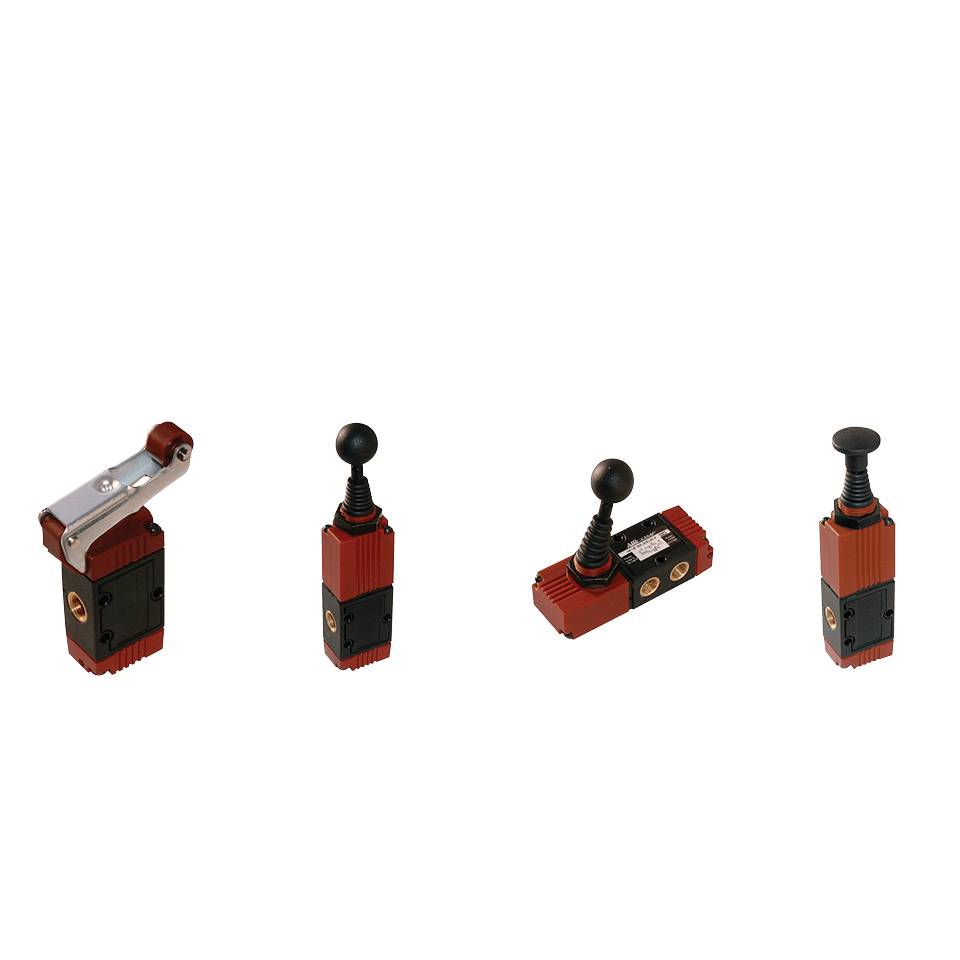

120 Series, Mechanical and Manual Actuated Technopolymer Spool Valves, 1/8″ Connection, (3/2 NC and NO and 5/2)
Your item(s) have been added to your shopping basket
120 Series, Mechanical and Manual Actuated Technopolymer Spool Valves, 1/8″ Connection, (3/2 NC and NO and 5/2)
- Technical specs
| Part number | Variation name | Function | Thread size | ISO symbol |
|---|---|---|---|---|
| 2038-6470 | Manual Push Pull, BSPP | 3/2 Push/Pull, Spring Return | 1/8" | |
| 2038-6488 | Manual Push Pull, BSPP | 3/2 Push/Pull, Detent | 1/8" | |
| 2038-6504 | Manual Axial Lever, BSPP | 3/2 Lever/Detent | 1/8" | |
| 2038-6512 | Manual 90° Lever, BSPP | 3/2 Lever/Spring | 1/8" | |
| 2038-6520 | Manual 90° Lever, BSPP | 3/2 Lever/Detent | 1/8" | |
| 2038-6538 | Manual Push Pull, BSPP | 5/2 Push/Pull, Spring Return | 1/8" | |
| 2038-6546 | Manual Push Pull, BSPP | 5/2 Push/Pull, Detent | 1/8" | |
| 2038-6595 | Manual Axial Lever, BSPP | 5/2 Lever/Spring | 1/8" | |
| 2038-6603 | Manual Axial Lever, BSPP | 5/2 Lever/Detent | 1/8" | |
| 2038-6611 | Manual Axial Lever, BSPP | 5/3 Lever/Detent, Closed Centres | 1/8" | |
| 2038-6629 | Manual Axial Lever, BSPP | 5/3 Lever/Detent, Open Centres | 1/8" | |
| 2038-6645 | Manual Axial Lever, BSPP | 5/3 Lever/Spring, Closed Centres | 1/8" | |
| 2038-6652 | Manual Axial Lever, BSPP | 5/3 Lever/Spring, Opened Centres | 1/8" | |
| 2038-6678 | Manual 90° Lever, BSPP | 5/2 Lever/Spring | 1/8" | |
| 2038-6686 | Manual 90° Lever, BSPP | 5/2 Lever/Detent, 2 Position | 1/8" | |
| 2038-6694 | Manual 90° Lever, BSPP | 5/3 Lever/Detent, Closed Centres | 1/8" | |
| 2038-6702 | Manual 90° Lever, BSPP | 5/3 Lever/Detent, Open Centres | 1/8" | |
| 2038-6728 | Manual 90° Lever, BSPP | 5/3 Lever/Spring, Closed Centres | 1/8" | |
| 2038-6736 | Manual 90° Lever, BSPP | 5/3 Lever/Spring, Opened Centres | 1/8" | |
| 2038-6827 | Mechanical Extended Roller Lever, BSPP | 3/2 Normally Closed, Roller Lever (Extended) | 1/8" | |
| 2038-6843 | Mechanical Uni-directional Roller Lever, BSPP | 3/2 Normally Closed, Uni-directional Roller Lever | 1/8" | |
| 2038-6868 | Mechanical Roller Lever, BSPP | 3/2 Normally Closed, Pilot Assisted, Roller Lever | 1/8" | |
| 2038-6876 | Mechanical Roller Lever, BSPP | 3/2 Normally Open, Pilot Assisted, Roller Lever | 1/8" | |
| 2038-6900 | Mechanical Lever, BSPP | 3/2 Normally Closed, Pilot Assisted, Lever | 1/8" | |
| 2038-6926 | Mechanical Whisker, BSPP | 3/2 Normally Closed, Pilot Assisted, Whisker | 1/8" | |
| 2038-6934 | Mechanical Whisker, BSPP | 3/2 Normally Open, Pilot Assisted, Whisker | 1/8" | |
| 2038-7007 | Mechanical Extended Roller Lever, BSPP | 5/2 Roller Lever (Extended) | 1/8" | |
| 2038-7023 | Mechanical Roller Lever, BSPP | 5/2 Pilot Assisted, Roller Lever | 1/8" | |
| 2038-7049 | Mechanical Lever, BSPP | 5/2 Pilot Assisted, Lever | 1/8" | |
| 2038-7056 | Mechanical Whisker, BSPP | 5/2 Pilot Assisted, Whisker | 1/8" |
