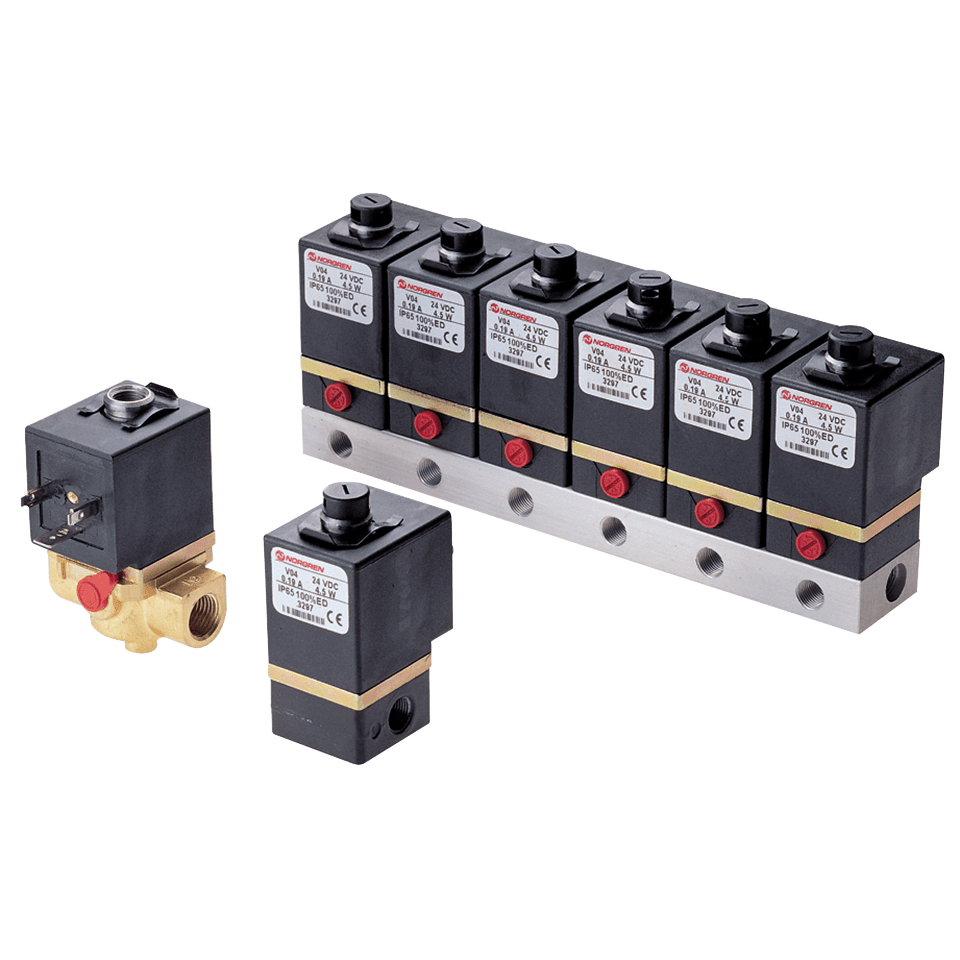

V05 Series

Pneumatic & Vacuum Equipment Excel 32 V03, V04 & V05 Series
V05 2/2 SOL NC 0-16 bar 2.5mm Orifice
  • Technical specs
Part number Variation name Thread size Voltage
V05A286M-B633A V05 2/2 SOL NC 0-16 bar 2.5mm Orifice G1/8 24V DC
V05A286M-B638A V05 2/2 SOL NC 0-16 bar 2.5mm Orifice G1/8 110/50-60
V05A386M-B633A V05 3/2 SOL NO 0-10 bar 2.5mm Orifice G1/8 24V DC
V05A386M-B638A V05 3/2 SOL NO 0-10 bar 2.5mm Orifice G1/8 110/50-60
V05A386M-B639A V05 3/2 SOL NO 0-10 bar 2.5mm Orifice G1/8 220/50-60
V05A486M-B633A V05 3/2 SOL NC 0-10 bar 2.5mm Orifice G1/8 24V DC
V05A486M-B638A V05 3/2 SOL NC 0-10 bar 2.5mm Orifice G1/8 110/50-60
V05A486M-B639A V05 3/2 SOL NC 0-10 bar 2.5mm Orifice G1/8 220/50-60
V05B286M-B433A V05 2/2 SOL NC 0-16 bar 2.5mm Orifice G1/4 24V DC
V05B286M-B438A V05 2/2 SOL NC 0-16 bar 2.5mm Orifice G1/4 110/50-60
V05X286M-B633A V05 2/2 SOL NC 0-16 bar 2.5mm Orifice Interface 24V DC
V05X286M-B638A V05 2/2 SOL NC 0-16 bar 2.5mm Orifice Interface 110/50-60
V05X386M-B633A V05 3/2 SOL NO 0-10 bar 2.5mm Orifice Interface 24V DC
V05X386M-B639A V05 3/2 SOL NO 0-10 bar 2.5mm Orifice Interface 220/50-60
V05X486M-B633A V05 3/2 SOL NC 0-10 bar 2.5mm Orifice Interface 24V DC
V05X486M-B638A V05 3/2 SOL NC 0-10 bar 2.5mm Orifice Interface 110/50-60
V05X486M-B639A V05 3/2 SOL NC 0-10 bar 2.5mm Orifice Interface 220/50-60
