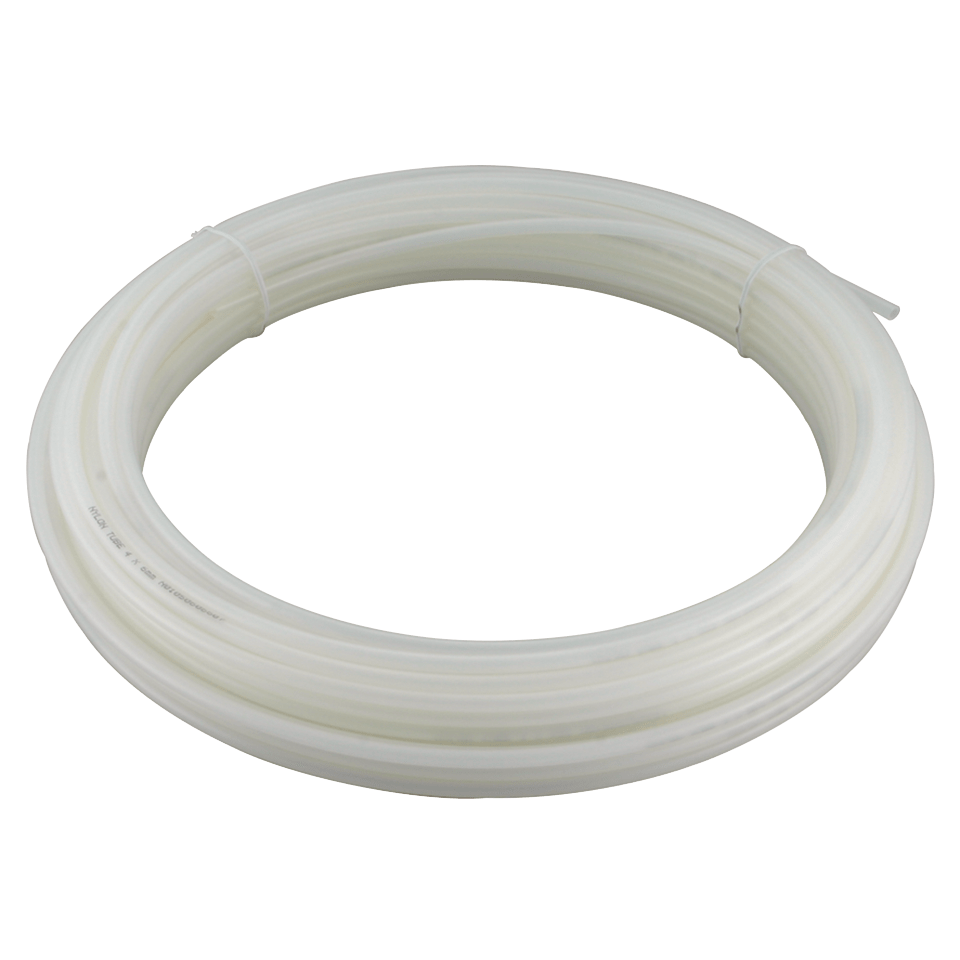

Metric Flexible Nylon 12 Tubing (BS5409 and DIN 73378)
Your item(s) have been added to your shopping basket
Metric Flexible Nylon 12 Tubing (BS5409 and DIN 73378)
- Technical specs
| Part number | Variation name | Outside diameter in mm | Inside diameter mm | Colour | Max gauge pressure in pounds per square inch |
|---|---|---|---|---|---|
| BNTM03/015 | 30 Metre Coils | 3 | 1.5 | Natural | 200 |
| BNTM04/025 | 30 Metre Coils | 4 | 2.5 | Natural | 400 |
| BNTM04/025B | 30 Metre Coils | 4 | 2.5 | Blue | 400 |
| BNTM04/025G | 30 Metre Coils | 4 | 2.5 | Green | 400 |
| BNTM04/025N | 30 Metre Coils | 4 | 2.5 | Black | 400 |
| BNTM04/025R | 30 Metre Coils | 4 | 2.5 | Red | 400 |
| BNTM04/2 | 30 Metre Coils | 4 | 2 | Natural | 350 |
| BNTM05/030 | 30 Metre Coils | 5 | 3 | Natural | 400 |
| BNTM05/030B | 30 Metre Coils | 5 | 3 | Blue | 400 |
| BNTM05/030N | 30 Metre Coils | 5 | 3 | Black | 400 |
| BNTM06/040 | 30 Metre Coils | 6 | 4 | Natural | 350 |
| BNTM06/040B | 30 Metre Coils | 6 | 4 | Blue | 350 |
| BNTM06/040G | 30 Metre Coils | 6 | 4 | Green | 350 |
| BNTM06/040N | 30 Metre Coils | 6 | 4 | Black | 350 |
| BNTM06/040R | 30 Metre Coils | 6 | 4 | Red | 350 |
| BNTM06/040Y | 30 Metre Coils | 6 | 4 | Yellow | 350 |
| BNTM060/030 | 30 Metre Coils | 6 | 3 | Natural | 350 |
| BNTM08/060 | 30 Metre Coils | 8 | 6 | Natural | 350 |
| BNTM08/060B | 30 Metre Coils | 8 | 6 | Blue | 350 |
| BNTM08/060G | 30 Metre Coils | 8 | 60 | Green | 350 |
| BNTM08/060N | 30 Metre Coils | 8 | 6 | Black | 350 |
| BNTM08/060R | 30 Metre Coils | 8 | 6 | Red | 350 |
| BNTM08/060Y | 30 Metre Coils | 8 | 6 | Yellow | 350 |
| BNTM10/070 | 30 Metre Coils | 10 | 7 | Natural | 300 |
| BNTM10/070B | 30 Metre Coils | 10 | 7 | Blue | 300 |
| BNTM10/070N | 30 Metre Coils | 10 | 7 | Black | 300 |
| BNTM10/070R | 30 Metre Coils | 10 | 7 | Red | 300 |
| BNTM10/080 | 30 Metre Coils | 10 | 8 | Natural | 220 |
| BNTM10/080B | 30 Metre Coils | 10 | 8 | Blue | 220 |
| BNTM10/080N | 30 Metre Coils | 10 | 8 | Black | 220 |
| BNTM10/080R | 30 Metre Coils | 10 | 8 | Red | 220 |
| BNTM12/090 | 30 Metre Coils | 12 | 9 | Natural | 250 |
| BNTM12/090B | 30 Metre Coils | 12 | 9 | Blue | 250 |
| BNTM12/090N | 30 Metre Coils | 12 | 9 | Black | 250 |
| BNTM12/090R | 30 Metre Coils | 12 | 9 | Red | 250 |
| BNTM12/100 | 30 Metre Coils | 12 | 10 | Natural | 200 |
| BNTM12/100N | 30 Metre Coils | 12 | 10 | Black | 200 |
| BNTM14/110 | 30 Metre Coils | 14 | 11 | Natural | 250 |
| BNTM14/110N | 30 Metre Coils | 14 | 11 | Black | 250 |
| BNTM16/130 | 30 Metre Coils | 16 | 13 | Natural | 200 |
