4000 Series, ISO B

Hydraulics Quick Release Couplings

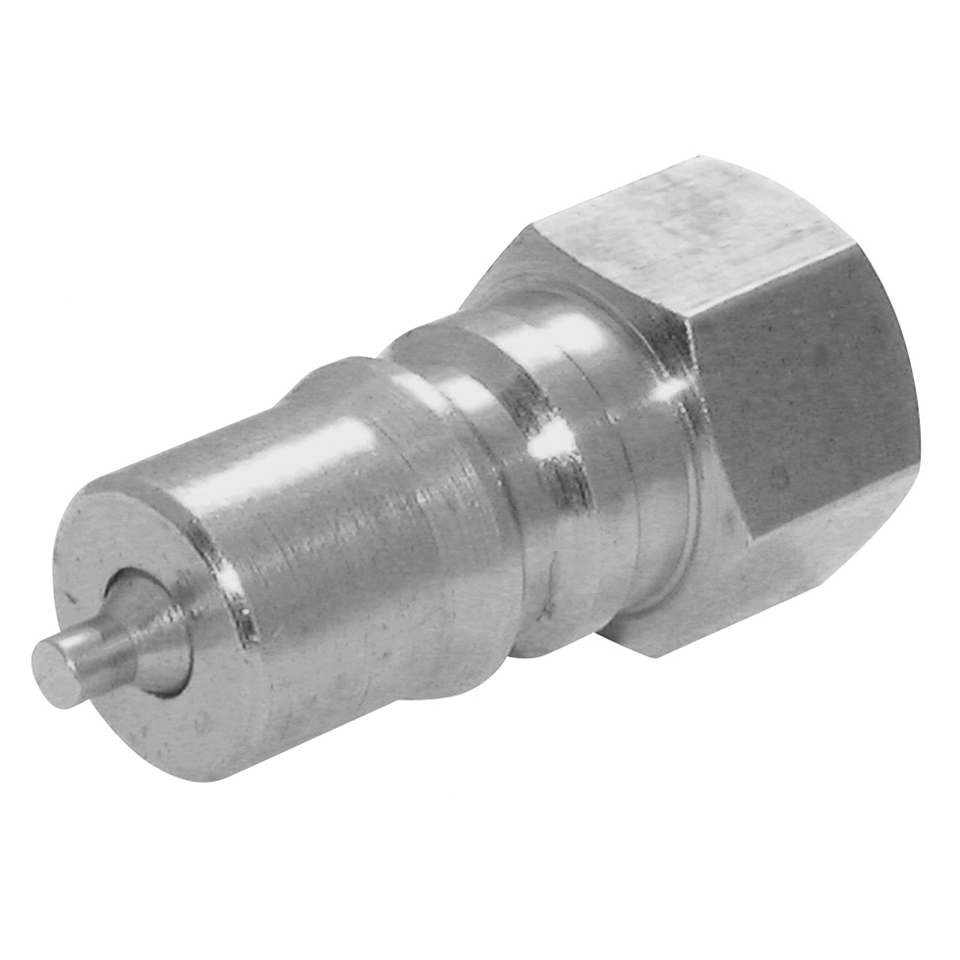

Male Tip Probe, BSP
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm4028 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
4001-04 Male Tip Probe, BSP 350 1/4” 1/4”
4001-06 Male Tip Probe, BSP 325 3/8” 3/8”
4001-08 Male Tip Probe, BSP 250 1/2” 1/2”
4001-12 Male Tip Probe, BSP 250 3/4” 3/4”
4001-16 Male Tip Probe, BSP 225 1” 1”
4001-24 Male Tip Probe, BSP 120 1.1/2” 1.1/2”
4001-32 Male Tip Probe, BSP 100 2” 2”
4002-04 Body Carrier, BSP 350 1/4” 1/4”
4002-06 Body Carrier, BSP 325 3/8” 3/8”
4002-08 Body Carrier, BSP 250 1/2” 1/2”
4002-12 Body Carrier, BSP 250 3/4” 3/4”
4002-16 Body Carrier, BSP 225 1” 1”
4002-24 Body Carrier, BSP 120 1.1/2” 1.1/2”
4002-32 Body Carrier, BSP 100 2” 2”
4003-04 Protective Cap, Plastic 1/4”
4003-06 Protective Cap, Plastic 3/8”
4003-08 Protective Cap, Plastic 1/2”
4003-12 Protective Cap, Plastic 3/4”
4003-16 Protective Cap, Plastic 1”
4003-20 Protective Cap, Plastic 1.1/4”
4003-24 Protective Cap, Plastic 1.1/2”
4003-32 Protective Cap, Plastic 2”
4004-04 Protective Plug, Plastic 1/4”
4004-06 Protective Plug, Plastic 3/8”
4004-08 Protective Plug, Plastic 1/2”
4004-12 Protective Plug, Plastic 3/4”
4004-16 Protective Plug, Plastic 1”
4004-20 Protective Plug, Plastic 1.1/4”
4004-24 Protective Plug, Plastic 1.1/2”
4004-32 Protective Plug, Plastic 2”
B/4001-04 Male Tip Probe, Brass, BSP 200 1/4” 1/4”
B/4001-06 Male Tip Probe, Brass, BSP 200 3/8” 3/8”
B/4001-08 Male Tip Probe, Brass, BSP 200 1/2” 1/2”
B/4001-12 Male Tip Probe, Brass, BSP 150 3/4” 3/4”
B/4001-16 Male Tip Probe, Brass, BSP 180 1” 1”
B/4001-24 Male Tip Probe, Brass, BSP 100 1.1/2” 1.1/2”
B/4001-32 Male Tip Probe, Brass, BSP 80 2” 2”
B/4002-04 Body Carrier, Brass, BSP 200 1/4” 1/4”
B/4002-06 Body Carrier, Brass, BSP 200 3/8” 3/8”
B/4002-08 Body Carrier, Brass, BSP 200 1/2” 1/2”
B/4002-12 Body Carrier, Brass, BSP 150 3/4” 3/4”
B/4002-16 Body Carrier, Brass, BSP 180 1” 1”
B/4002-24 Body Carrier, Brass, BSP 100 1.1/2” 1.1/2”
B/4002-32 Body Carrier, Brass, BSP 80 2” 2”
SS/4001-04 Male Tip Probe, Stainless Steel, BSP 300 1/4” 1/4”
SS/4001-06 Male Tip Probe, Stainless Steel, BSP 280 3/8” 3/8”
SS/4001-08 Male Tip Probe, Stainless Steel, BSP 250 1/2” 1/2”
SS/4001-12 Male Tip Probe, Stainless Steel, BSP 250 3/4” 3/4”
SS/4001-16 Male Tip Probe, Stainless Steel, BSP 200 1” 1”
SS/4001-24 Male Tip Probe, Stainless Steel, BSP 110 1.1/2” 1.1/2”
SS/4001-32 Male Tip Probe, Stainless Steel, BSP 90 2” 2”
SS/4002-04 Body Carrier, Stainless Steel, BSP 300 1/4” 1/4”
SS/4002-06 Body Carrier, Stainless Steel, BSP 280 3/8” 3/8”
SS/4002-08 Body Carrier, Stainless Steel, BSP 250 1/2” 1/2”
SS/4002-12 Body Carrier, Stainless Steel, BSP 250 3/4” 3/4”
SS/4002-16 Body Carrier, Stainless Steel, BSP 200 1” 1”
SS/4002-24 Body Carrier, Stainless Steel, BSP 110 1.1/2” 1.1/2”
SS/4002-32 Body Carrier, Stainless Steel, BSP 90 2” 2”
