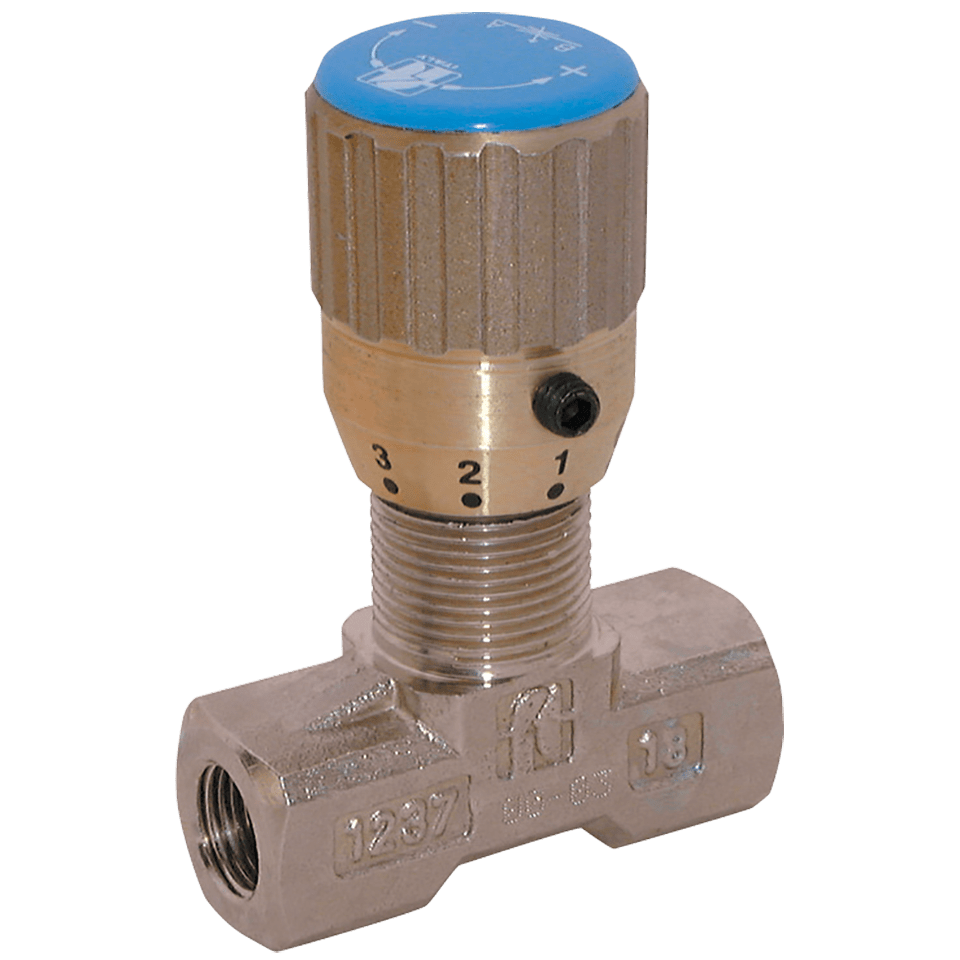

Needle Valves

Body: brass, nickel plated. Seal: nitrile. Stem: 304 stainless steel. Working Temperature: -20ºC to +100ºC Maximum Working Pressure: 210 bar
Hydraulics Hydraulic Valves
In-line, Bi-directional (Controlled Flow Both Ways) Flow Control & Shut Off, BSPP
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm5227 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
1251-1010 In-line, Bi-directional (Controlled Flow Both Ways) Flow Control & Shut Off, BSPP 1/8”
1251-1313 In-line, Bi-directional (Controlled Flow Both Ways) Flow Control & Shut Off, BSPP 1/4”
1251-1717 In-line, Bi-directional (Controlled Flow Both Ways) Flow Control & Shut Off, BSPP 3/8”
1251-2121 In-line, Bi-directional (Controlled Flow Both Ways) Flow Control & Shut Off, BSPP 1/2”
1252-2010 Angled, In-line, Bi-directional (Controlled Flow Both Ways) Flow Control & Shut Off, BSPP 1/8”
1252-2013 Angled, In-line, Bi-directional (Controlled Flow Both Ways) Flow Control & Shut Off, BSPP 1/4”
1252-2017 Angled, In-line, Bi-directional (Controlled Flow Both Ways) Flow Control & Shut Off, BSPP 3/8”
1252-2021 Angled, In-line, Bi-directional (Controlled Flow Both Ways) Flow Control & Shut Off, BSPP 1/2”
1253-3013 In-line, Uni-directional (Controlled Flow One Way) with Free Reverse Flow, BSPP 1/4”
1253-3017 In-line, Uni-directional (Controlled Flow One Way) with Free Reverse Flow, BSPP 3/8”
1253-3021 In-line, Uni-directional (Controlled Flow One Way) with Free Reverse Flow, BSPP 1/2”
