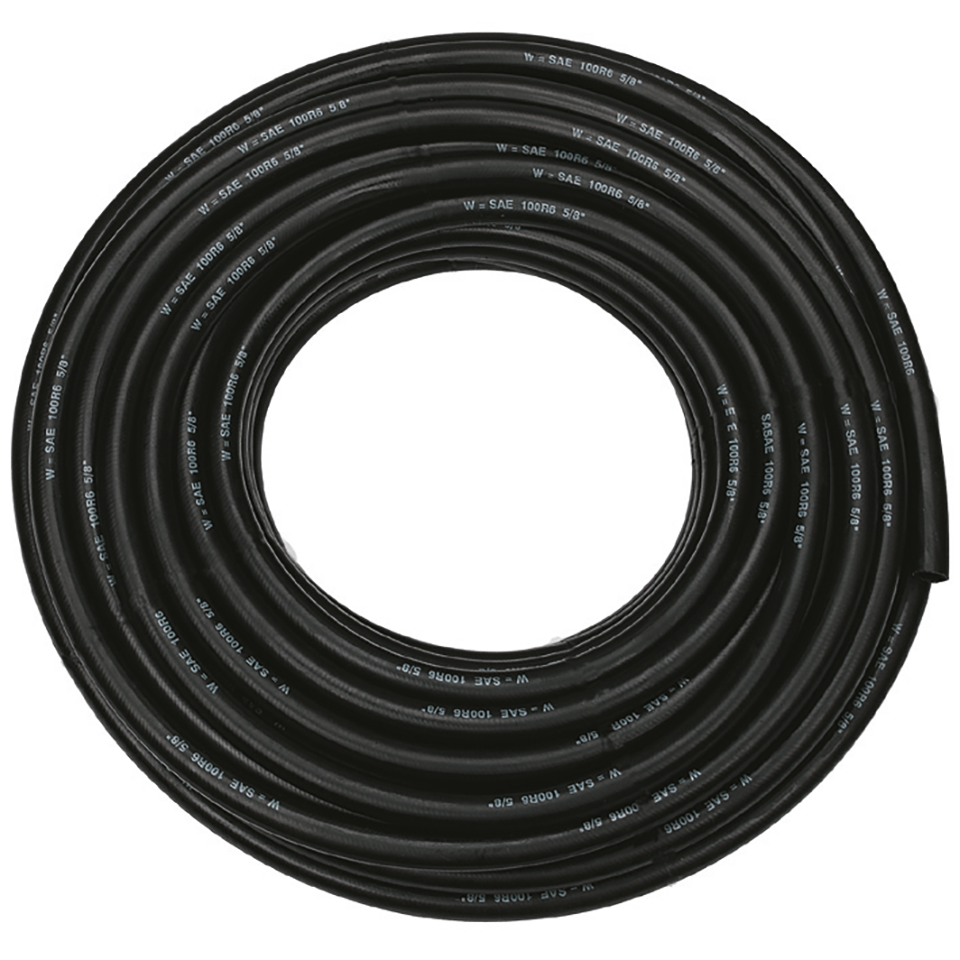

SAE 100R6 Rayon Braided
Construction:
• Inner tube: seamless black NBR rubber, oil resistant
• Reinforcement: one textile braid
• Cover: black NBR rubber, resistant to abrasion, oil, ozone and weathering
Application:
Hose range suitable for applications
including low pressure hydraulic oil lines,
and pneumatic lines. Will handle petroleum
base hydraulic fl uids, air, water, diesel fuels
and lubricating oils. Hose specifi cation
conforms with SAE J 517 100R6.
Temperature Range: -40°C to +100°C
Your item(s) have been added to your shopping basket
SAE 100R6 Rayon Braided
- Technical specs
Part number | Variation name | Outside diameter in millimetres | Bend radius in millimetres | Burst pressure in bar | Maximum gauge pressure in bar | Burst pressure | Vacuum level in inches of mercury | Thread size | Thread size in millimetres | Thread size in UNF | Size of inlet thread | Size of outlet thread | To suit internal diameter of hose | To suit metric internal diameter of hose | To suit metric outside | Flange size | Seal Type | Working temp | Output Signal mA | Litres per Minute | Mpa Working pressure | Micron Rating for filtration | To Suit | Notes | Length MM | Hole Centres in mm | Height in MM | Port Size | Oem Code | Element Media | Old Ref | Material | Model | Box QTY | Bypass in PSIG | Float Material | Flow rate in cubic | Litres per second | ElemnentSize | Voltage | Max Litres per Minute | Wattage | OD In INCHES | Max working pressure | Size | Max Pressure for rotation | Displacement cm83 | Volume | Function | To suit Cartridge | Ratio | No. of Stations | Type | Frame Size | Group Number |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
100R6-03 | 100R6, Single Wire | 11.0 | 50 | 0.10 | 35.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||
100R6-04 | 100R6, Single Wire | 12.7 | 65 | 0.16 | 28.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||
100R6-05 | 100R6, Single Wire | 14.3 | 75 | 0.19 | 28.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||
100R6-06 | 100R6, Single Wire | 15.9 | 75 | 0.22 | 28.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||
100R6-08 | 100R6, Single Wire | 19.8 | 100 | 0.30 | 28.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||
100R6-10 | 100R6, Single Wire | 23.0 | 125 | 0.37 | 24.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||
100R6-12 | 100R6, Single Wire | 27.0 | 150 | 0.47 | 21.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||
100R6-16 | 100R6, Single Wire | 35.0 | 200 | 0.74 | 21.0 |
