SAE 100R2AT

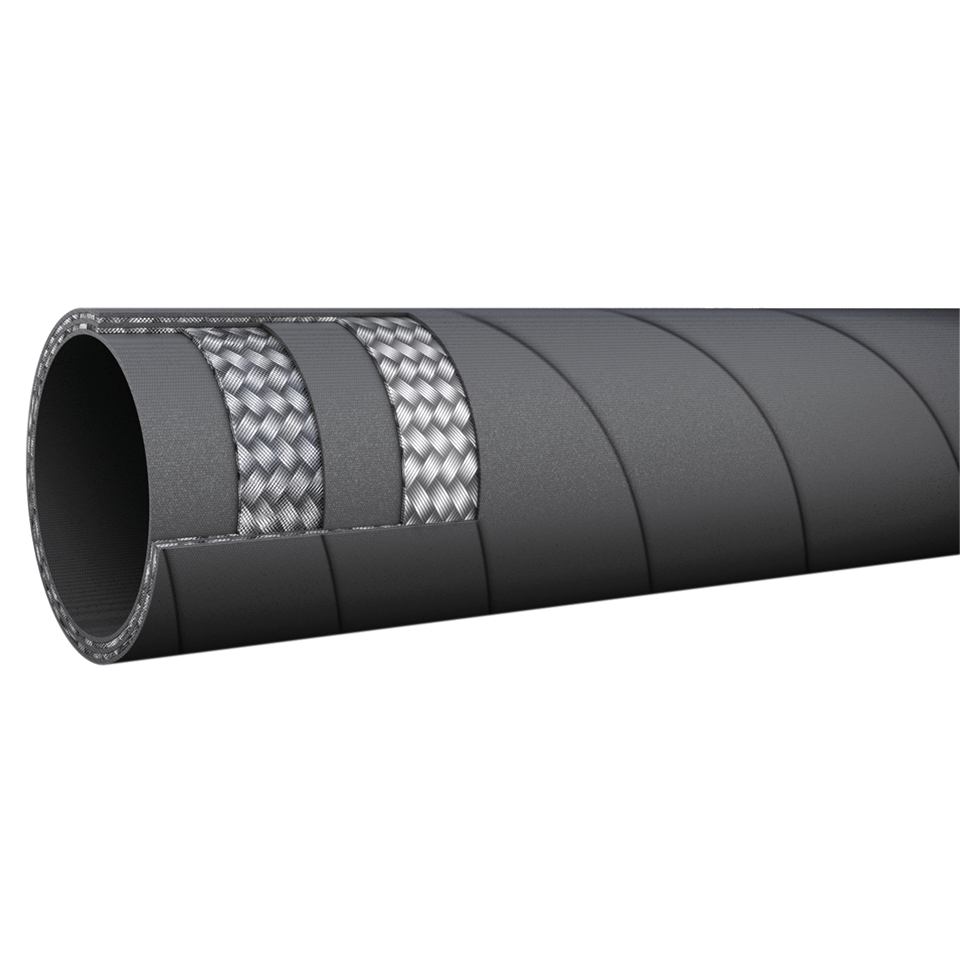

Construction: • Inner tube: seamless black synthetic rubber, oil resistant • Reinforcement: two braids of high-tensile steel wire
Hydraulics Hydraulic Hose Range
Double Wire, Non Skive
Specifications
Cover: synthetic rubber, resistant to abrasion, oil, ozone and weathering Application: Hose range suitable to carry hydraulic fl uids such as glycol, mineral oils, hydrocarbons, etc. Burst pressure exceeds four times working pressure. Hose specifi cation exceeds SAE J 517 100 R2AT ISO 1436 DIN 20022 2SN EN 853 2SN. Temperature Range: -40°C to +100°C
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm63 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
100R2AT-04 Double Wire, Non Skive 15.0 100 0.36 400.0
100R2AT-05 Double Wire, Non Skive 16.2 115 0.45 350.0
100R2AT-06 Double Wire, Non Skive 18.8 130 0.54 330.0
100R2AT-08 Double Wire, Non Skive 21.8 180 0.63 275.0
100R2AT-10 Double Wire, Non Skive 24.8 200 0.74 250.0
100R2AT-12 Double Wire, Non Skive 28.9 240 0.94 215.0
100R2AT-16 Double Wire, Non Skive 37.5 300 1.38 165.0
100R2AT-20 Double Wire, Non Skive 47.3 420 1.87 125.0
100R2AT-24 Double Wire, Non Skive 54.5 500 2.30 90.0
100R2AT-32 Double Wire, Non Skive 66.8 630 3.16 80.0
100R2ATHT-04 Double Wire, High Temperature 15.0 100 0.36 400.0
100R2ATHT-05 Double Wire, High Temperature 16.6 115 0.45 350.0
100R2ATHT-06 Double Wire, High Temperature 19.0 130 0.53 330.0
100R2ATHT-08 Double Wire, High Temperature 22.2 180 0.62 275.0
100R2ATHT-10 Double Wire, High Temperature 25.4 200 0.73 250.0
100R2ATHT-12 Double Wire, High Temperature 29.3 240 0.93 215.0
100R2ATHT-16 Double Wire, High Temperature 38.1 300 1.38 165.0
100R2ATHT-20 Double Wire, High Temperature 48.3 420 1.67 125.0
100R2ATHT-24 Double Wire, High Temperature 54.3 500 2.30 90.0
100R2ATHT-32 Double Wire, High Temperature 67.0 630 3.16 80.0
