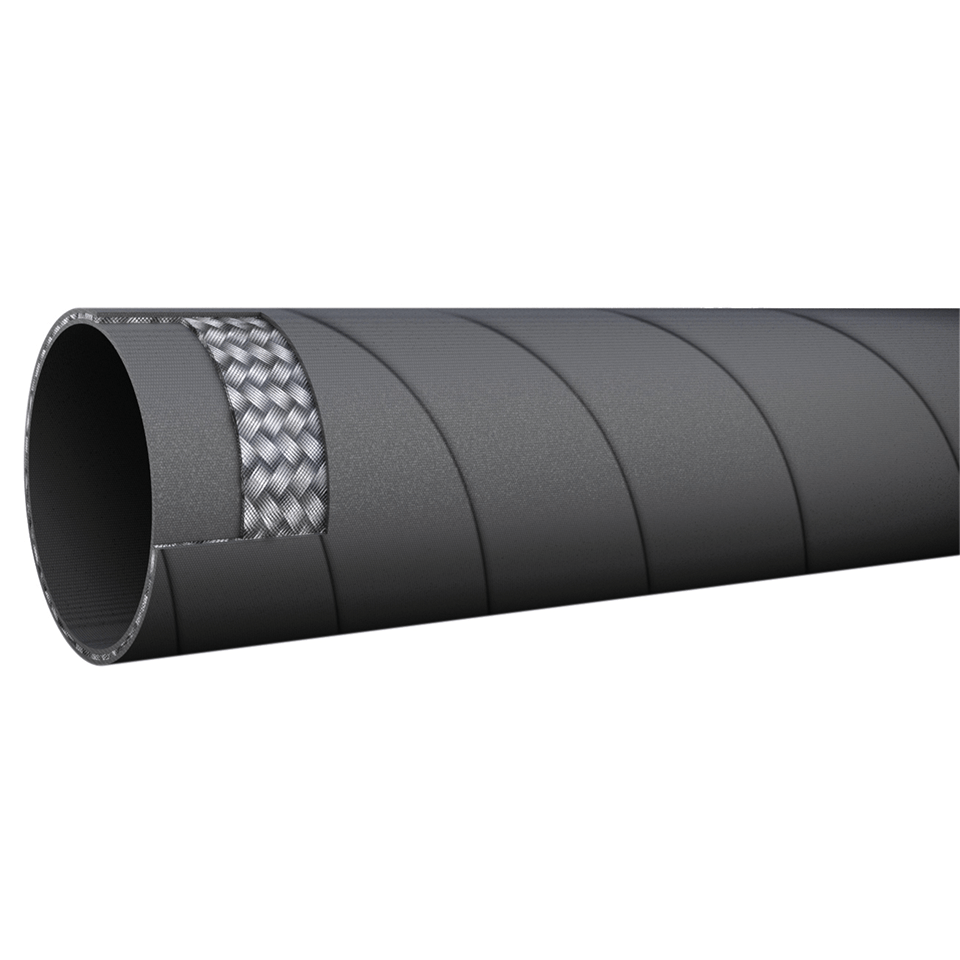

SAE 100R1AT

Hose specification exceeds SAE J 517 100 R1AT ISO 1436 1SN EN 853 1SN Temperature Range: -40°C to +150°C Discontinuous except air not higher than +121°C
Hydraulics Hydraulic Hose Range
Single Wire
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm43 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
100R1AT-04 Single Wire 13.0 100 0.23 225
100R1AT-05 Single Wire 14.7 115 0.26 215
100R1AT-06 Single Wire 17.0 130 0.32 180
100R1AT-08 Single Wire 20.4 180 0.41 160
100R1AT-10 Single Wire 23.5 200 0.48 130
100R1AT-12 Single Wire 27.5 240 0.61 105
100R1AT-16 Single Wire 35.1 300 0.94 88
100R1AT-20 Single Wire 42.8 420 1.20 63
100R1AT-24 Single Wire 49.9 500 1.60 50
100R1AT-32 Single Wire 63.5 630 2.20 40
100R1ATHT-04 Single Wire, High Temperature 13.0 100 0.20 225
100R1ATHT-05 Single Wire, High Temperature 14.7 115 0.25 215
100R1ATHT-06 Single Wire, High Temperature 17.0 130 0.32 180
100R1ATHT-08 Single Wire, High Temperature 20.1 180 0.42 160
100R1ATHT-10 Single Wire, High Temperature 23.2 200 0.48 130
100R1ATHT-12 Single Wire, High Temperature 27.2 240 0.61 105
100R1ATHT-16 Single Wire, High Temperature 35.1 300 0.91 88
100R1ATHT-20 Single Wire, High Temperature 42.8 420 1.20 63
100R1ATHT-24 Single Wire, High Temperature 49.6 500 1.50 50
100R1ATHT-32 Single Wire, High Temperature 62.5 630 2.00 40
