PFM Isobar

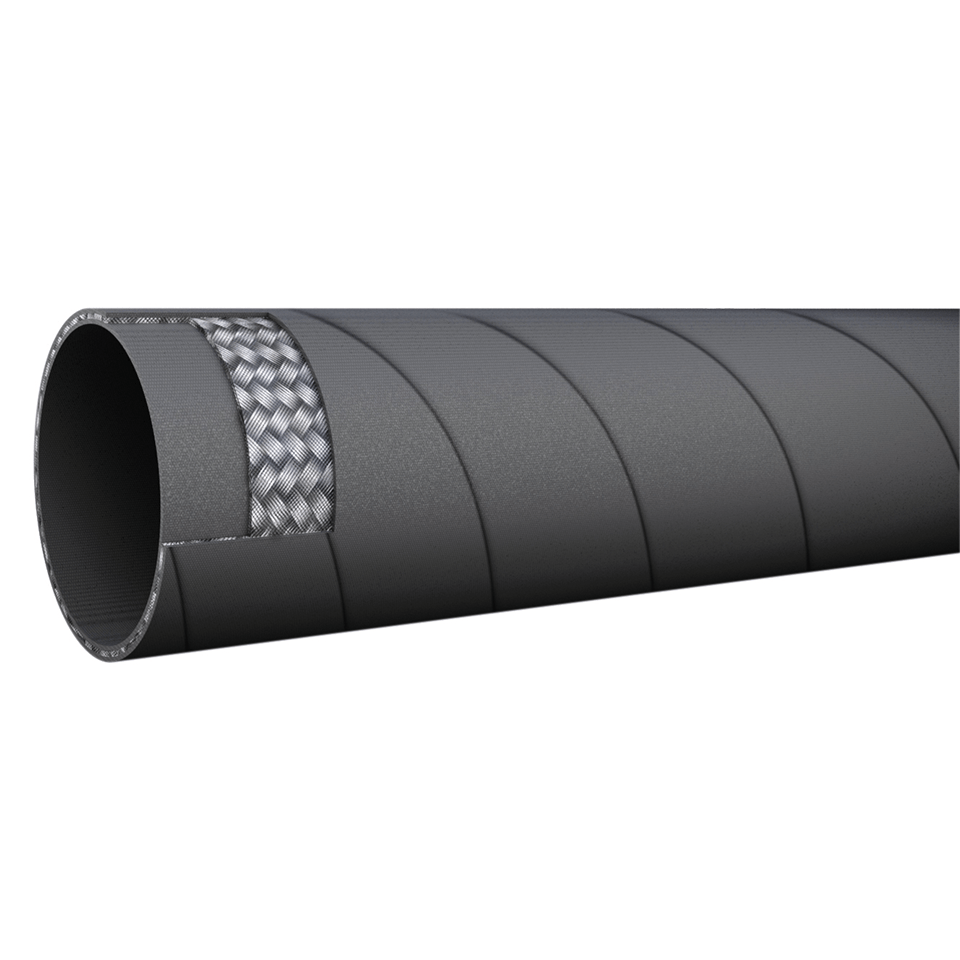

Construction: • Inner tube: seamless black synthetic rubber. • Cover: synthetic rubber, resistant to abrasion, oil, ozone and weathering. Application: Hose range suitable to carry hydraulic fl uids such as glycol, mineral oils, hydrocarbons, etc. Burst pressure exceeds four times working pressure. Also available with MSHA accepted cover and USCG SAE 1942 approval. Please specify PFMU for these applications. Reinforcement: one or two braids of high-tensile steel wire • Hose specifi cation exceeds SAE J 517 -100R1AT DIN 20022 1SN, EN 853 1SN, ISO 1436 and SAEJ 1754/B • Twin line bonded version available on request Working Pressure: 250 bar Temperature Range:-40°C to +100°C
Braided, 250 bar
Specifications
Reinforcement: one or two braids of high-tensile steel wire • Hose specifi cation exceeds SAE J 517 -100R1AT DIN 20022 1SN, EN 853 1SN, ISO 1436 and SAEJ 1754/B • Twin line bonded version available on request
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm2 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
PFM25-04 Braided, 250 bar 12.1 45 0.18
PFM25-05 Braided, 250 bar 13.8 55 0.22
PFM25-06 Braided, 250 bar 15.8 60 0.28
PFM25-08 Braided, 250 bar 20.3 70 0.41
PFM25-10 Braided, 250 bar 24.0 90 0.58
PFM25-12 Braided, 250 bar 27.5 120 0.80
PFM25-16 Braided, 250 bar 36.7 300 1.21
PFM35-04 Braided, 350 bar 13.8 75 0.18
PFM35-05 Braided, 350 bar 15.0 165 0.22
PFM35-06 Braided, 350 bar 18.0 90 0.28
PFM35-08 Braided, 350 bar 21.4 130 0.41
PFM35-10 Braided, 350 bar 24.6 250 0.58
PFM35-12 Braided, 350 bar 30.2 310 0.80
PFM35SX-12 Spiral, 350 bar 19.0 120 1.20
PFM35SX-16 Spiral, 350 bar 25.0 150 1.80
PFM35SX-20 Spiral, 350 bar 31.8 280 2.40
PFM35SX-24 Spiral, 350 bar 38.1 300 4.60
PFM35SX-32 Spiral, 350 bar 50.8 635 6.90
PFM42SX-04 Spiral, 420 bar 1/4"-1" 17.9 150 0.60
PFM42SX-06 Spiral, 420 bar 1/4"-1" 22.4 180 0.70
PFM42SX-08 Spiral, 420 bar 1/4"-1" 25.4 230 0.90
PFM42SX-10 Spiral, 420 bar 1/4"-1" 28.1 240 1.10
PFM42SX-12 Spiral, 420 bar 1/4"-1" 30.6 170 1.50
PFM42SX-16 Spiral, 420 bar 1/4"-1" 37.8 220 2.00
PFM42SX-20 Spiral, 420 bar 1.1/4"-2" 49.3 300 3.00
PFM42SX-24 Spiral, 420 bar 1.1/4"-2" 57.0 350 4.60
PFM42SX-32 Spiral, 420 bar 1.1/4"-2" 72.0 700 7.00
