Multi Spiral, DIN 20023-4 SP EN 856 4SP

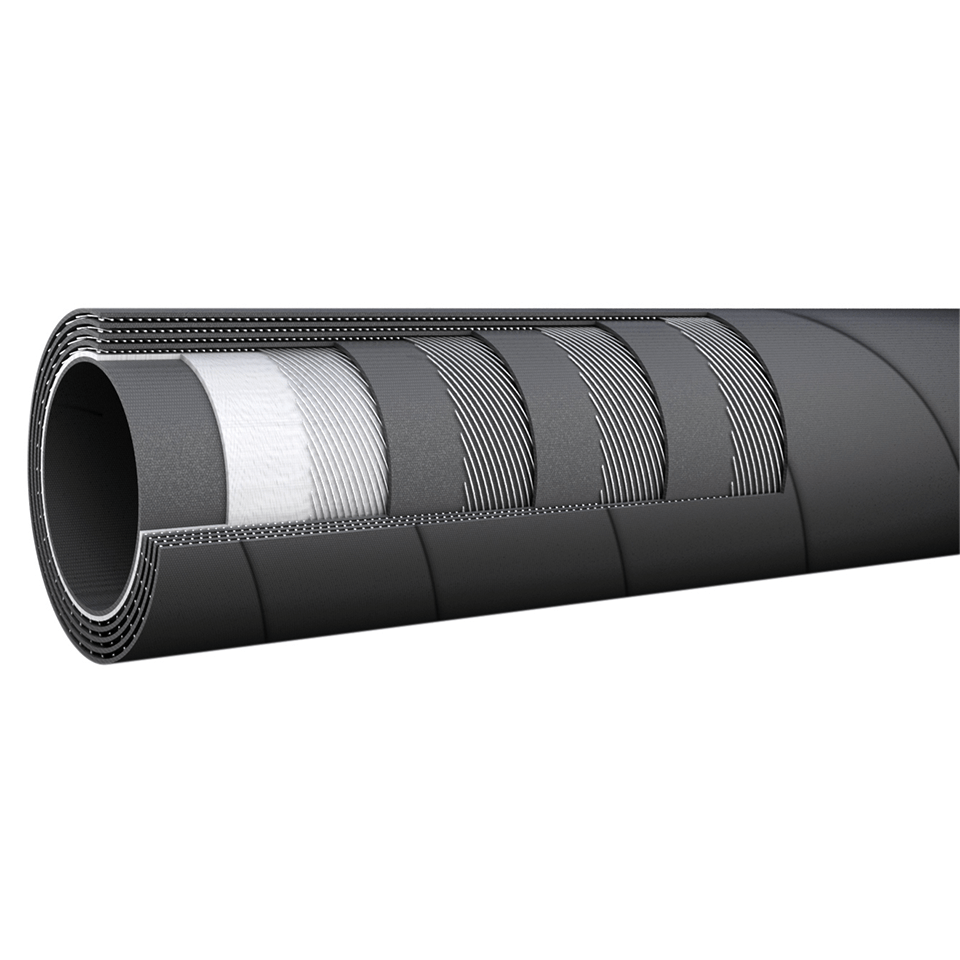

Construction: • Inner tube: seamless black synthetic rubber, oil resistant • Reinforcement: four layers of alternated, spiralled, high-tensile steel wire over a layer of fabric • Cover: black synthetic rubber, resistant to abrasion, oils, ozone and weathering Application: Hose range suitable to carry hydraulic fl uids such glycol, mineral oils, hydrocarbons, etc. Burst pressure exceeds four times working pressure. This range is particularly designed for hydraulic applications where high degree of realibility is requested. Hose specifi cation meets or exceeds requirements of DIN 20023 4SP, SAE J 517 100 R10, EN 856 4SP. Temperature Range: -40°C to +121°C
Four Spiral
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm101 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
DIN4SP-04 Four Spiral 17.8 150 0.64 450.0
DIN4SP-06 Four Spiral 20.0 180 0.75 445.0
DIN4SP-08 Four Spiral 23.8 230 0.89 425.0
DIN4SP-10 Four Spiral 27.6 250 1.10 400.0
DIN4SP-12 Four Spiral 31.9 300 1.50 350.0
DIN4SP-16 Four Spiral 39.4 340 2.00 320.0
DIN4SP-20 Four Spiral 50.8 460 3.10 210.0
DIN4SP-24 Four Spiral 57.2 560 3.65 185.0
DIN4SP-32 Four Spiral 69.8 660 4.95 165.0
