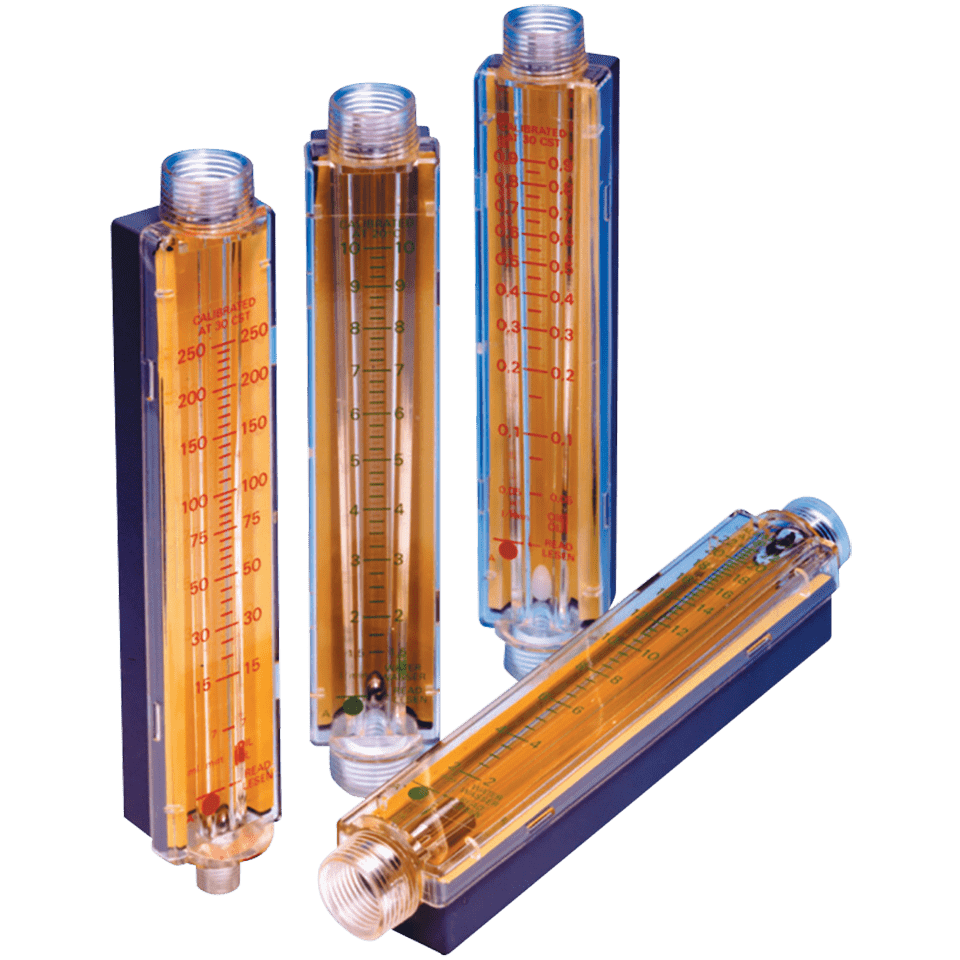

Lofl ow Oil, Water & Air Flowmeters

• Flow measurement from 7.0 ml/min to 22 l/min • Easy to read, permanent printed scales • Large scale defi nition for precise measurement • Easy panel mounting assembly • Negligible pressure drop characteristics • 10 bar pressure rating Construction: Body: Grillon TR55. Back Body: ABS7020. Ball Retainer: ABS7020. Back Panel: PVC. Accuracy: ±2% FSD. Repeatability: ±1%. Connections: Inlet 1/4” or 3/4” tapered threads. Outlet 3/4” tapered threads. Typical Applications: • Monitoring inert gases for the welding industry • Pollution monitoring • Pharmaceutical industry • Filtration systems • Hospital equipment for water applications • Water treatment • Swimming pools
Water BSPT, Inlet
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm6127 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
LF1002 Water BSPT, Inlet 3/4" 0.010-0.20 Oil S/S
LF1009 Water BSPT, Inlet 3/4" 0.1-0.9 Oil Acetal
LF1090 Water BSPT, Inlet 3/4" 1.0-9.0 Oil S/S
LF2020 Water BSPT, Inlet 3/4" 0.2-2.0 Water Acetal
LF2100 Water BSPT, Inlet 3/4" 1.5-10.0 Water S/S
LF2220 Water BSPT, Inlet 3/4" 2.0-22.0 Water S/S
LF3007E Water BSPT, Inlet 1/4" 1-7.0 Air Acetal
LF3050E Water BSPT, Inlet 3/4" 10-50.0 Air Acetal
LF3135E Water BSPT, Inlet 3/4" 20-135.0 Air Acetal
LF3330E Water BSPT, Inlet 3/4" 1.5-5.5l/sec Air S/S
LF3720E Water BSPT, Inlet 3/4" 1-12.0 l/sec Air S/S
