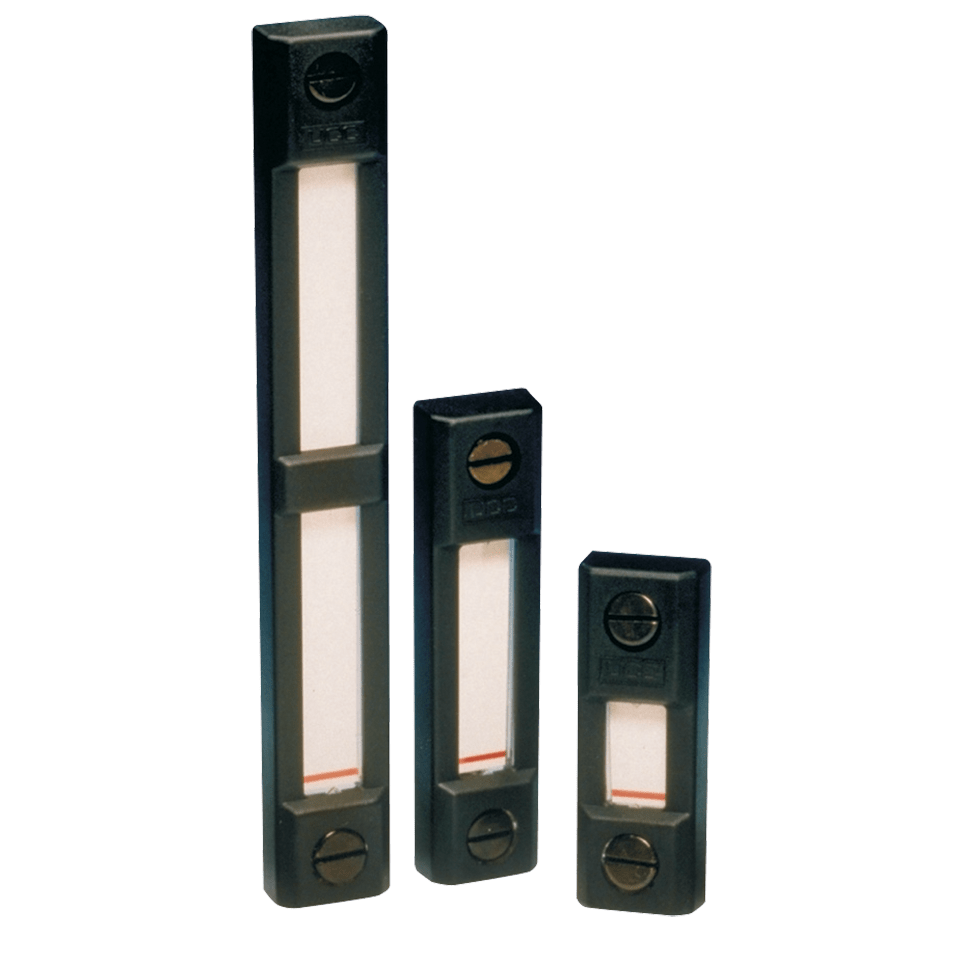

Fluid Level & Temperature Gauges

Construction: • Lens: transparent polyamide • Lens base: nylon 66 • No aluminium content • Shroud: high impact polystyrene Seals: nitrile. Fluid Compatibility: Mineral and petroleum based fluids.
Fluid Level
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm6104 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
FL111 Fluid Level M10 76
FL112 Fluid Level M12 76
FL211 Fluid Level M10 127
FL212 Fluid Level M12 127
FL311 Fluid Level M10 254
FL312 Fluid Level M12 254
FLT112 Fluid Level Temperature M12 76
FLT121 Fluid Level Temperature M10 76
FLT212 Fluid Level Temperature M12 127
FLT221 Fluid Level Temperature M10 127
FLT312 Fluid Level Temperature M12 254
FLT321 Fluid Level Temperature M10 254
