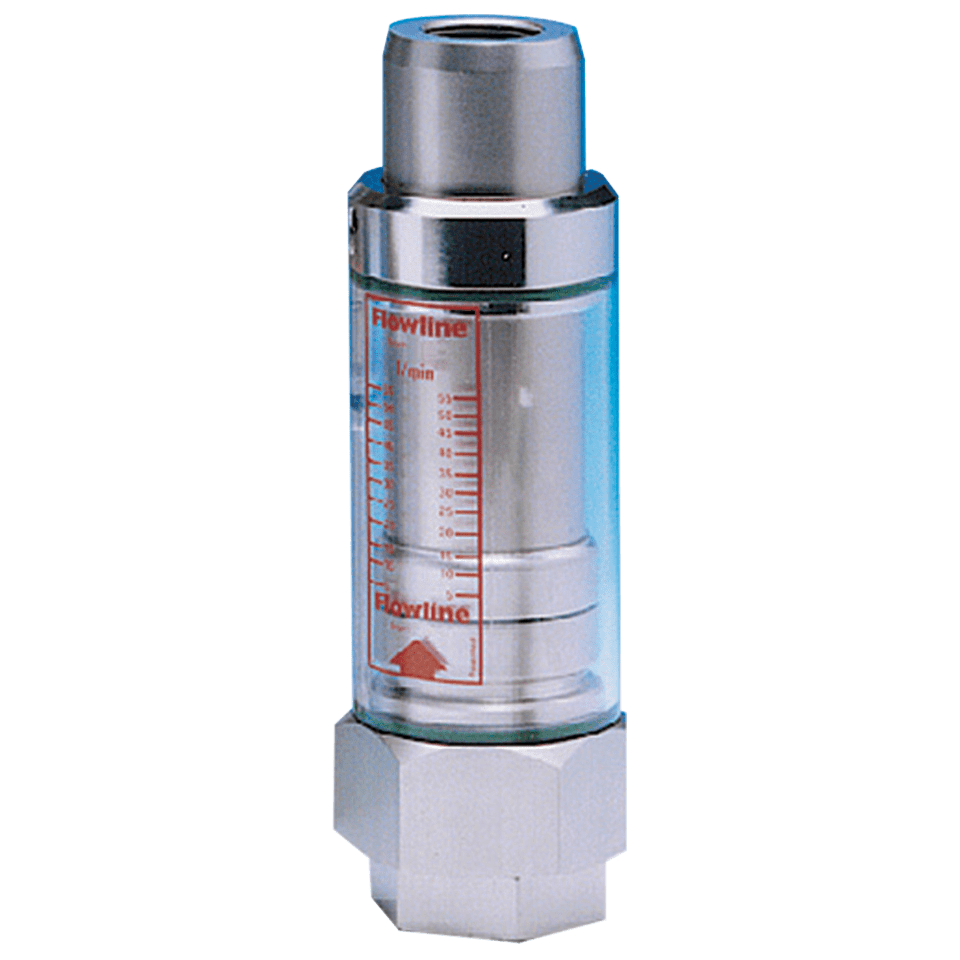

Flowline Oil & Water Calibrated Flowmeters, Stainless Steel
• For fl ow measurement of corrosive or
chemical media
• Manufactured in stainless steel 316
• Works in any position
• Pressure up to 350 bar (5,000 psi)
• Flows up to 360 l/min
• Direct reading
Construction:
Stainless steel to BS970 316S.
Calibration:
Oil = specifi c gravity 0.856 at 20ºC.
Water = specifi c gravity 1.0 at 20ºC.
Viscosity Range: 10-200 centistokes.
Accuracy: ±5% FSD.
Repeatability: ±1% FSD.
Minimum Scale: ±1% FSD, 10% FSD.
Connections: BSPP.
Seal: Viton.
Wetted Parts:
Body, Thread, Adaptor, piston, etc:
Cone Locknut stainless steel BS 970316S 16.
Magnet Encapsulation:
Stainless steel BS970/1:1991:316S31.
Spring: stainless steel to BS2056 EN58J.
Your item(s) have been added to your shopping basket
Flowline Oil & Water
Calibrated Flowmeters,
Stainless Steel
- Technical specs
| Part number | Variation name | Outside diameter in millimetres | Bend radius in millimetres | Burst pressure in bar | Maximum gauge pressure in bar | Burst pressure | Vacuum level in inches of mercury | Thread size | Thread size in millimetres | Thread size in UNF | Size of inlet thread | Size of outlet thread | To suit internal diameter of hose | To suit metric internal diameter of hose | To suit metric outside | Flange size | Seal Type | Working temp | Output Signal mA | Litres per Minute | Mpa Working pressure | Micron Rating for filtration | To Suit | Notes | Length MM | Hole Centres in mm | Height in MM | Port Size | Oem Code | Element Media | Old Ref | Material | Model | Box QTY | Bypass in PSIG | Float Material | Flow rate in cubic | Litres per second | ElemnentSize | Voltage | Max Litres per Minute | Wattage | OD In INCHES | Max working pressure | Size | Max Pressure for rotation | Displacement cm6130 | Volume | Function | To suit Cartridge | Ratio | No. of Stations | Type | Frame Size | Group Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FM26332112 | Stainless Steel, BSPP, Red, Oil | 350 | 3/4" | 5-55 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FM26332122 | Stainless Steel, BSPP, Yellow, Water | 350 | 3/4" | 5-55 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FM26332212 | Stainless Steel, BSPP, Red, Oil | 350 | 3/4" | 10-110 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FM26332222 | Stainless Steel, BSPP, Yellow, Water | 350 | 3/4" | 10-110 |
