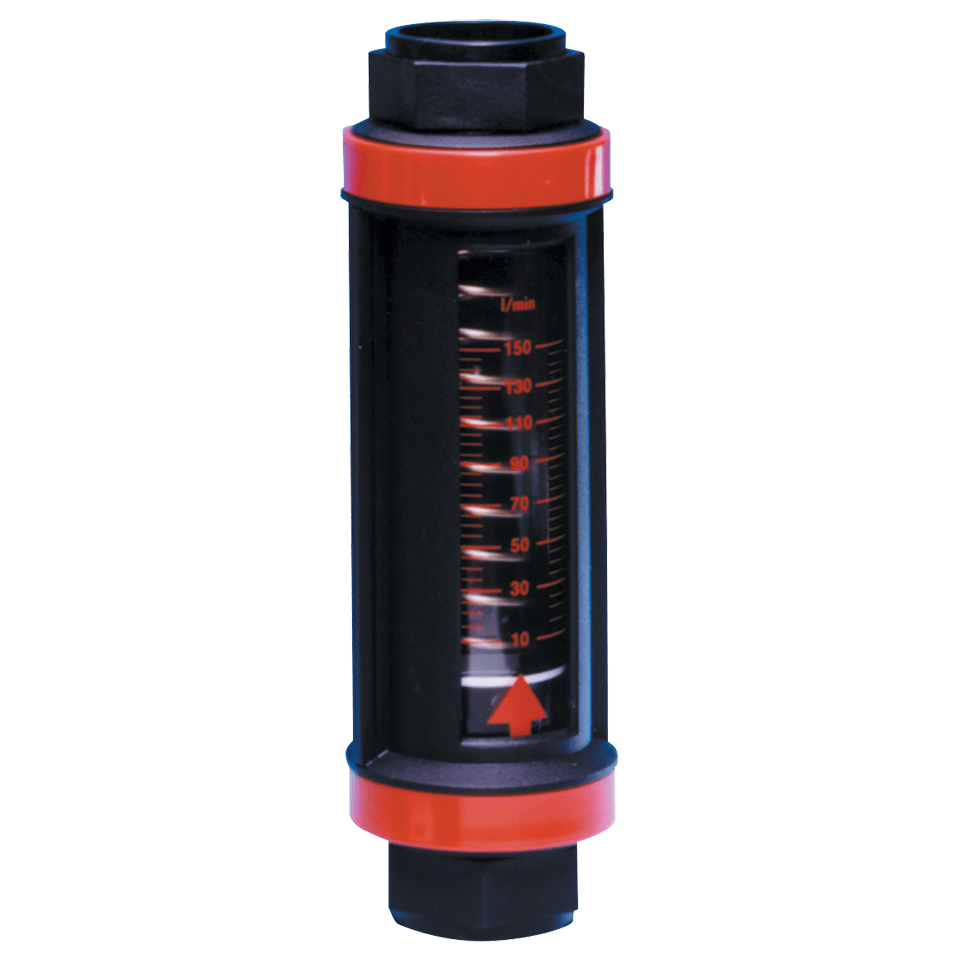

Easiflow Meters

• Oil and water calibrated • Works in any plane • Pressures up to 10 bar • Flow: 1-150 l/min • Accuracy: ±5% FSD • Repeatability: ±1% FSD • Switches – fully adjustable fl ow rate signalling • Plant and equipment protection • Switches – colour coded by application and AC/DC options Construction: Cone: acetal. Viewing glass: borosilicate glass. Calibrated spring: stainless steel. Seal: nitrile. Body: glass-fi lled nylon. Flow Range: 1-150 l/min. Viscosity Range: 10-200 centistrokes. Accuracy: ±5% FSD. Repeatability: ±1% FSD. Connections: 1” BSPP. Weight: 0.4kg.
Hydraulics Hydraulic Flow Metering
Oil
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm6095 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
EFL0301 Oil 2-30
EFL0501 Oil 4-50
EFL1001 Oil 5-100
EFL1501 Oil 10-150
EFW0152 1-15 Water 1-15
EFW0302 2-30 Water 2-30
EFW0502 4-50 Water 4-50
EFW1002 5-100 Water 5-100
EFW1502 10-150 Water 10-150
