In-line Contamination Monitor

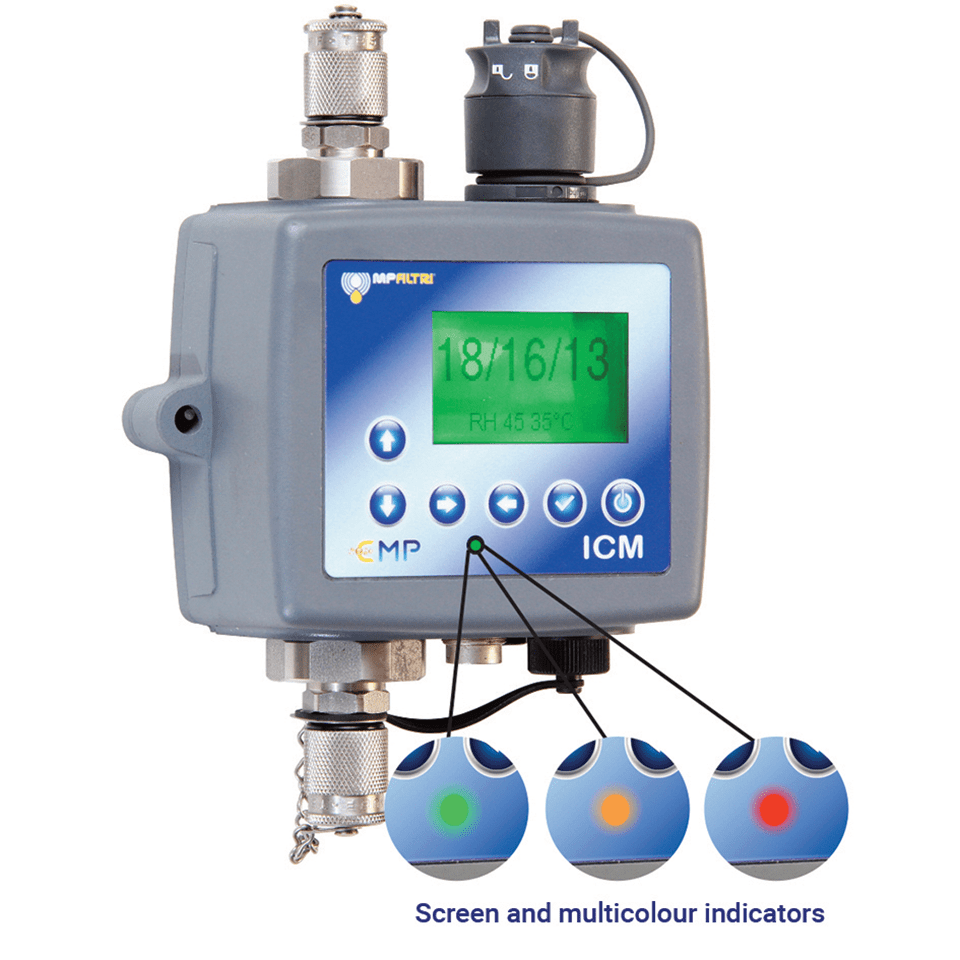

The ICM automatically measures and displays particulate contamination, moisture and temperature levels in various hydraulic fluids. Benefi ts: • The most comprehensive contamination-monitoring data available in the marketplace today, reporting in ISO 4406, NAS 1638 AS 4059E and ISO 11218 across eight channels • Wide fl uid compatibility, viscosity and temperature variants to suit all types of system environments • Full visibility of contamination levels with visual particle count • View historic data log instantly with visual of previous ten tests on screen • Monitors contamination, moisture and temperature levels all in one compact unit • Fully calibrated unit – quality and reliability guaranteed • Data captured for trend-monitoring with USB stick download option direct from unit Features: • Eight-channel contamination measurement and display • Data logging and 4,000 test result memory • Manual, automatic and remote control fl exibility • Multicolour indicators via LCD (K versions) and LED with output alarm signals as standard • Robust die-cast aluminium construction • LPA View software (included) • Maximum pressure: 420 bar • Environmental protection: IP65/67, versatile • Secondary connector to allow the simultaneous control/download of results during operation • 4-20mA analogue output as standard
ICM – In-line Contamination Control Monitor
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm6336 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
ICM0NKRG1 ICM – In-line Contamination Control Monitor M12 x 2 Subsea Fluids 9-36V DC 20-400 >2.2W
ICMWMKRG1 ICM – In-line Contamination Control Monitor M12 x 2 Mineral Oil 9-36V DC 20-400 >2.2W
