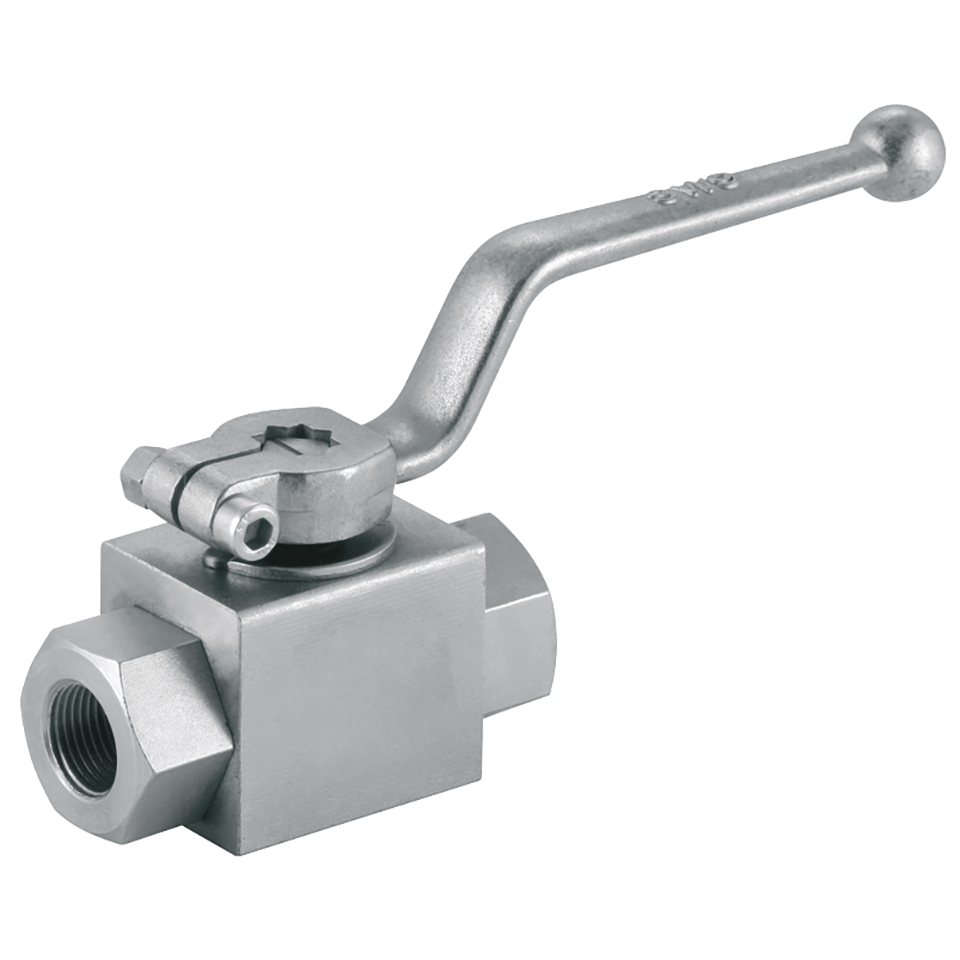

2 Way Ball Valves

Hydraulics Ball & Gate Valves
High Pressure, BSP
Specifications
Materials: • Body: steel 9SMn28K, yellow zinc passivate • Ball: brass, chromed mirror fi nish • Stem seal: nitrile (others on request) • Ball seal: POM-MoS2 (others on request)
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm4465 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
HPBV-02 High Pressure, BSP 500 1/8”
HPBV-02-NPT High Pressure, NPT 500 1/4”
HPBV-04 High Pressure, BSP 500 1/4”
HPBV-04-NPT High Pressure, NPT 500 3/8”
HPBV-06 High Pressure, BSP 500 3/8”
HPBV-06-NPT High Pressure, NPT 500 1/2”
HPBV-06L Compression Ended, Light 500 6L
HPBV-08 High Pressure, BSP 500 1/2”
HPBV-08-NPT High Pressure, NPT 400 3/4”
HPBV-08L Compression Ended, Light 500 8L
HPBV-08S Compression Ended, Heavy 500 8S
HPBV-10L Compression Ended, Light 500 10L
HPBV-10S Compression Ended, Heavy 500 10S
HPBV-12 High Pressure, BSP 400 3/4”
HPBV-12-NPT High Pressure, NPT 350 1”
HPBV-12L Compression Ended, Light 500 12L
HPBV-12S Compression Ended, Heavy 500 12S
HPBV-14S Compression Ended, Heavy 500 14S
HPBV-15L Compression Ended, Light 500 15L
HPBV-16 High Pressure, BSP 350 1”
HPBV-16-NPT High Pressure, NPT 350 1.1/4”
HPBV-16S Compression Ended, Heavy 500 16S
HPBV-18L Compression Ended, Light 500 18L
HPBV-20 High Pressure, BSP 350 1.1/4”
HPBV-20S Compression Ended, Heavy 500 20S
HPBV-22L Compression Ended, Light 500 22L
HPBV-24 High Pressure, BSP 350 1.1/2”
HPBV-25S Compression Ended, Heavy 500 25S
HPBV-28L Compression Ended, Light 500 28L
HPBV-30S Compression Ended, Heavy 500 30S
HPBV-35L Compression Ended, Light 500 35L
HPBV-38S Compression Ended, Heavy 500 38S
MPBV-06 Medium Pressure, BSP 210 3/8”
MPBV-08 Medium Pressure, BSP 210 1/2”
MPBV-12 Medium Pressure, BSP 210 3/4”
MPBV-16 Medium Pressure, BSP 210 1”
