Hose Tails

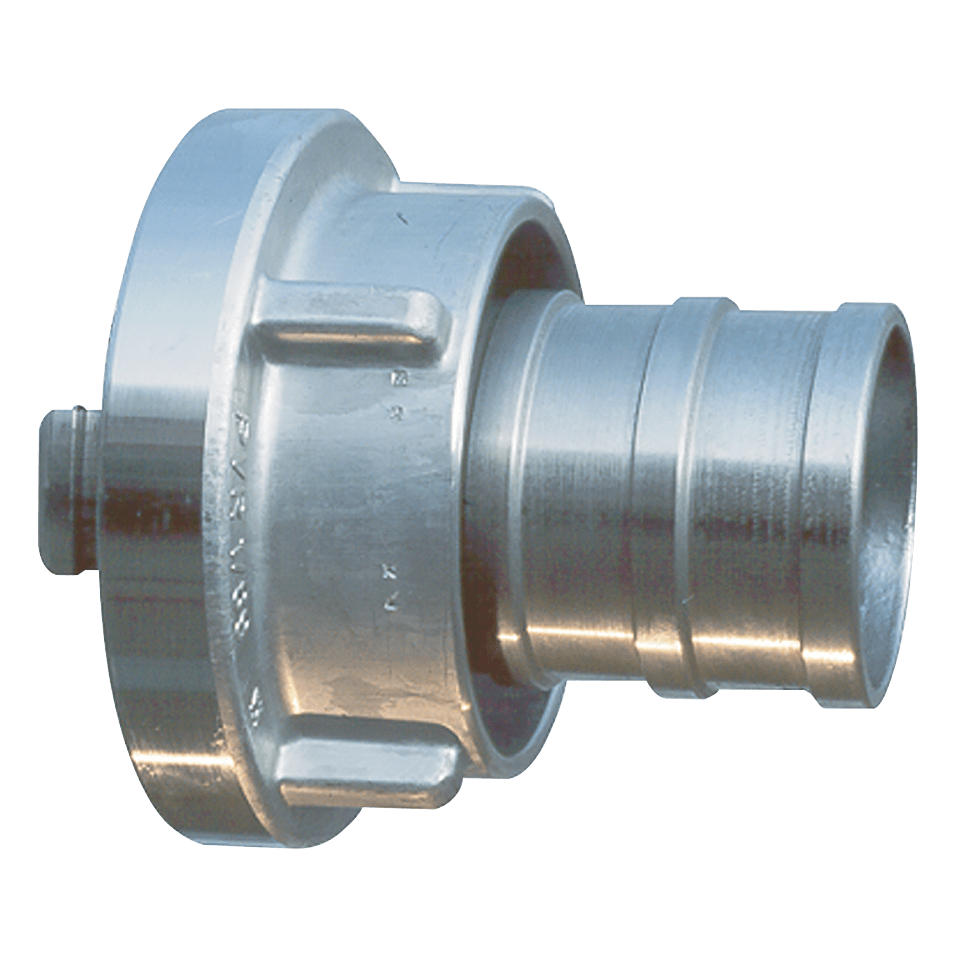

Hose, Tubing & Couplings Storz DIN Suction Couplings
Aluminium
  • Technical specs
Part number Variation name Storz coupling size To suit metric internal diameter hose Distance between lugs on Storz Couplings Dimension L mm
SZ-12-031025-10 Aluminium 25-D 25 31 53
SZ-12-031025-30 Copper Alloy (Brass) 25-D 25 31 25
SZ-12-044019-10 Aluminium 32 19 44 70
SZ-12-044025-10 Aluminium 32 25 44 70
SZ-12-044032-10 Aluminium 32 32 44 70
SZ-12-051038-10 Aluminium 38 38 51 90
SZ-12-066025-10 Aluminium 52-C 25 66 90
SZ-12-066025-30 Copper Alloy (Brass) 52-C 25 66 90
SZ-12-066032-10 Aluminium 52-C 32 66 90
SZ-12-066045-10 Aluminium 52-C 45 66 90
SZ-12-066045-30 Copper Alloy (Brass) 52-C 45 66 90
SZ-12-066052-10 Aluminium 52-C 52 66 90
SZ-12-066052-30 Copper Alloy (Brass) 52-C 52 66 90
SZ-12-066060-10 Aluminium 52-C 60 66 90
SZ-12-081065-10 Aluminium 65 65 81 95
SZ-12-089065-10 Aluminium 75-B 65 89 125
SZ-12-089070-10 Aluminium 75-B 70 89 125
SZ-12-089075-10 Aluminium 75-B 75 89 125
SZ-12-089080-10 Aluminium 75-B 80 89 125
SZ-12-105090-10 Aluminium 90 90 105 160
SZ-12-115100-10 Aluminium 100 100 115 150
SZ-12-133100-10 Aluminium 110-A 100 133 170
SZ-12-133110-10 Aluminium 110-A 110 133 170
SZ-12-160150-10 Aluminium 150 150 160 180
SZ-12-220205-10 Aluminium 205 205 220 375
SZ-13-089075-10 Aluminium, Smooth, DIN 2817 75-B 75 89 105
SZ-13-166050-10 Aluminium, Smooth, DIN 2817 52-C 50 66 95
