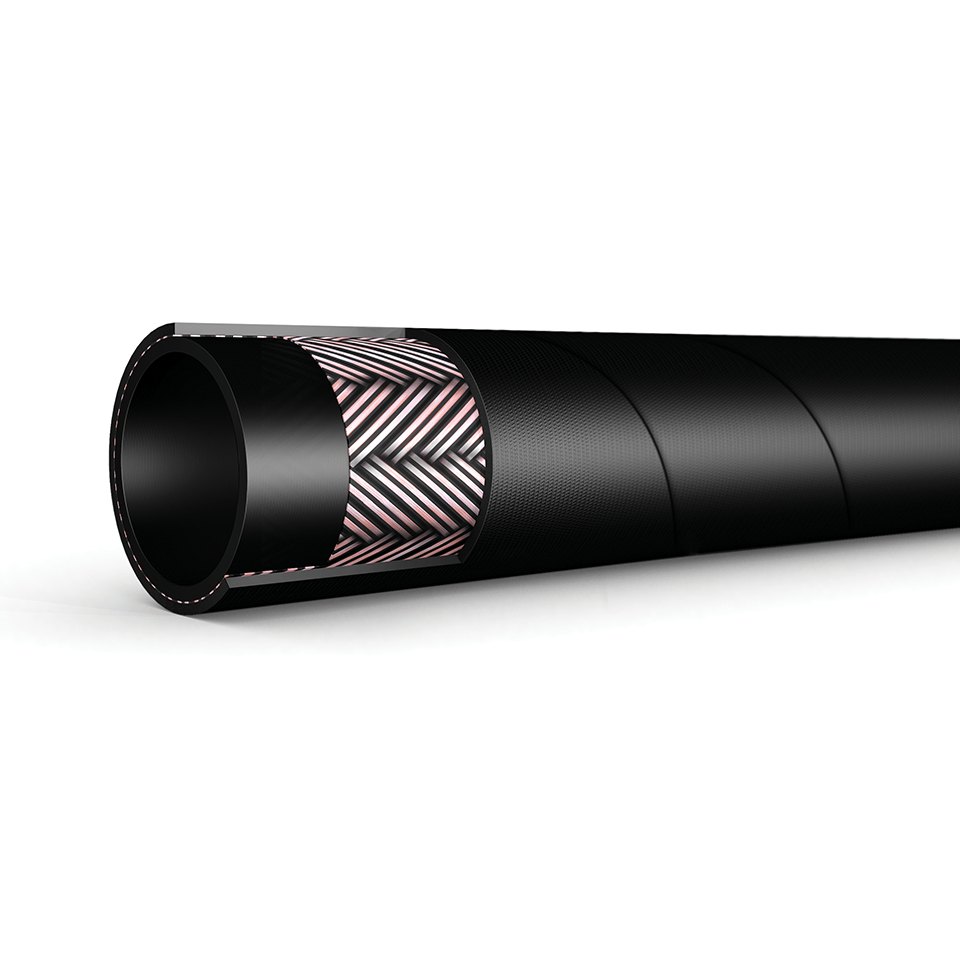

Oil Return/Fuel Hose SAE 100R6
Your item(s) have been added to your shopping basket
Oil Return/Fuel Hose SAE 100R6
- Technical specs
| Part number | Variation name | Inside diameter | Outside diameter in mm | Max gauge pressure in bar | Bend radius in mm | Burst pressure in bar |
|---|---|---|---|---|---|---|
| 100R6-04-50 | Black | 1/4" | 13.5 | 28 | 65 | 112 |
| 100R6-04-B-50 | Blue | 1/4" | 13.5 | 28 | 65 | 112 |
| 100R6-04-G-50 | Green | 1/4" | 13.5 | 28 | 65 | 112 |
| 100R6-04-R-50 | Red | 1/4" | 13.5 | 28 | 65 | 112 |
| 100R6-05-50 | Black | 5/16" | 15.1 | 28 | 75 | 112 |
| 100R6-06-50 | Black | 3/8" | 16.7 | 28 | 75 | 112 |
| 100R6-06-B-50 | Blue | 3/8" | 16.7 | 28 | 75 | 112 |
| 100R6-06-G-50 | Green | 3/8" | 16.7 | 28 | 75 | 112 |
| 100R6-06-R-50 | Red | 3/8" | 16.7 | 28 | 75 | 112 |
| 100R6-08-50 | Black | 1/2" | 20.6 | 28 | 100 | 112 |
| 100R6-08-B-50 | Blue | 1/2" | 20.6 | 28 | 100 | 112 |
| 100R6-08-G-50 | Green | 1/2" | 20.6 | 28 | 100 | 112 |
| 100R6-08-R-50 | Red | 1/2" | 20.6 | 28 | 100 | 112 |
| 100R6-10-50 | Black | 5/8" | 23.8 | 24 | 125 | 98 |
