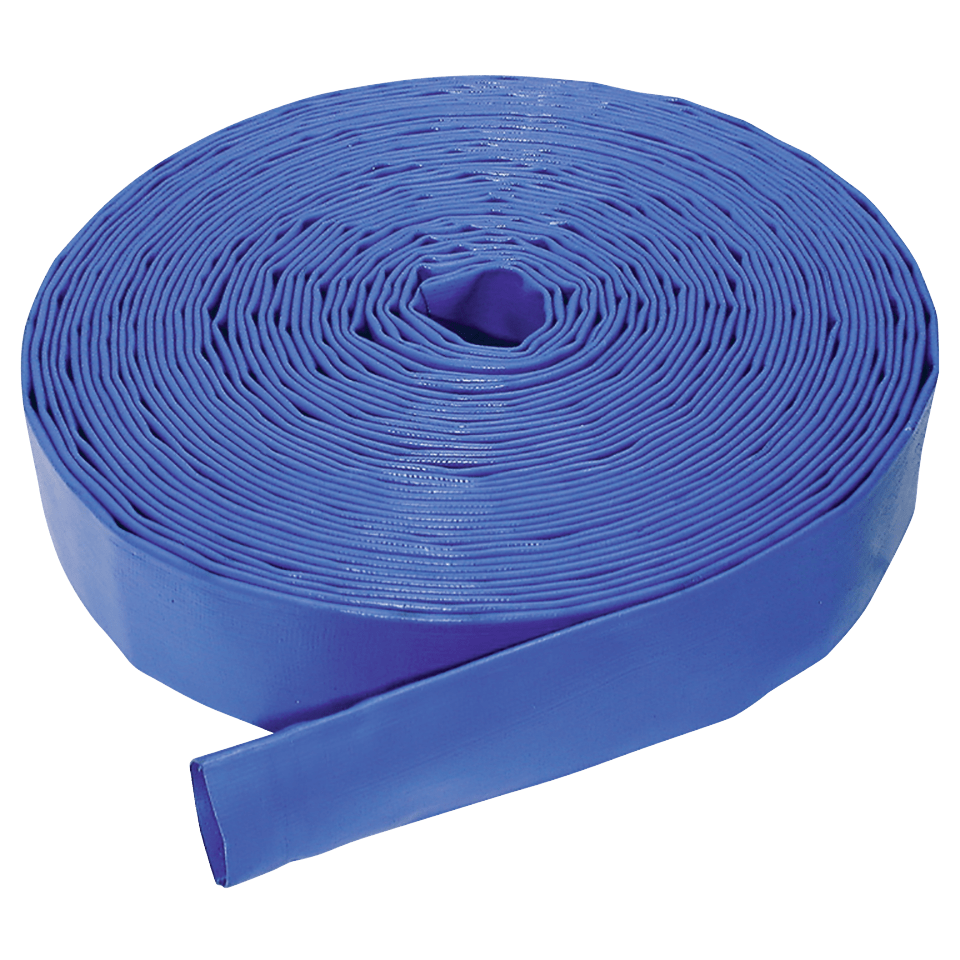

Layflat Delivery Hose

Hose, Tubing & Couplings Layflat Hose
Blue, 100 Metre Coils
  • Technical specs
Part number Variation name Inside diameter Inside diameter mm Max gauge pressure in bar
LFH1-100 Blue, 100 Metre Coils 1" 25 4.5
LFH112-10 Blue, 10 Metre Coils 1.1/2" 38 4.5
LFH112-100 Blue, 100 Metre Coils 1.1/2" 38 4.5
LFH114-10 Blue, 10 Metre Coils 1.1/4" 32 4.5
LFH114-100 Blue, 100 Metre Coils 1.1/4" 32 4.5
LFH2-10 Blue, 10 Metre Coils 2" 51 4.5
LFH2-100 Blue, 100 Metre Coils 2" 51 4.5
LFH212-10 Blue, 10 Metre Coils 2.1/2" 64 4.5
LFH212-100 Blue, 100 Metre Coils 2.1/2" 64 4.5
LFH3-10 Blue, 10 Metre Coils 3" 76 4.5
LFH3-100 Blue, 100 Metre Coils 3" 76 4.5
LFH4-10 Blue, 10 Metre Coils 4" 102 4.5
LFH4-100 Blue, 100 Metre Coils 4" 102 4.5
LFH6-10 Blue, 10 Metre Coils 6" 150 4.5
LFH6-100 Blue, 100 Metre Coils 6" 150 4.5
LFH8-10 Blue, 10 Metre Coils 8" 200 4.5
LFH8-100 Blue, 100 Metre Coils 8" 200 4.5
YLH-1 Yellow, 100 Metre Coils 1" 25 6
YLH-1-10 Yellow, 10 Metre Coils 1" 25 6
YLH-112 Yellow, 100 Metre Coils 1.1/2" 38 6
YLH-112-10 Yellow, 10 Metre Coils 1.1/2" 38 6
YLH-114 Yellow, 100 Metre Coils 1.1/4" 32 6
YLH-114-10 Yellow, 10 Metre Coils 1.1/4" 32 6
YLH-2 Yellow, 100 Metre Coils 2" 51 6
YLH-2-10 Yellow, 10 Metre Coils 2" 51 6
YLH-3 Yellow, 100 Metre Coils 3" 76 6
YLH-3-10 Yellow, 10 Metre Coils 3" 76 6
YLH-4 Yellow, 100 Metre Coils 4" 102 6
YLH-4-10 Yellow, 10 Metre Coils 4" 102 6
YLH-5 Yellow, 100 Metre Coils 5" 127 6
YLH-5-10 Yellow, 10 Metre Coils 5" 127 6
YLH-6 Yellow, 100 Metre Coils 6" 152 6
YLH-6-10 Yellow, 10 Metre Coils 6" 152 6
YLH-8 Yellow, 100 Metre Coils 8" 203 6
YLH-8-10 Yellow, 10 Metre Coils 8" 203 6
