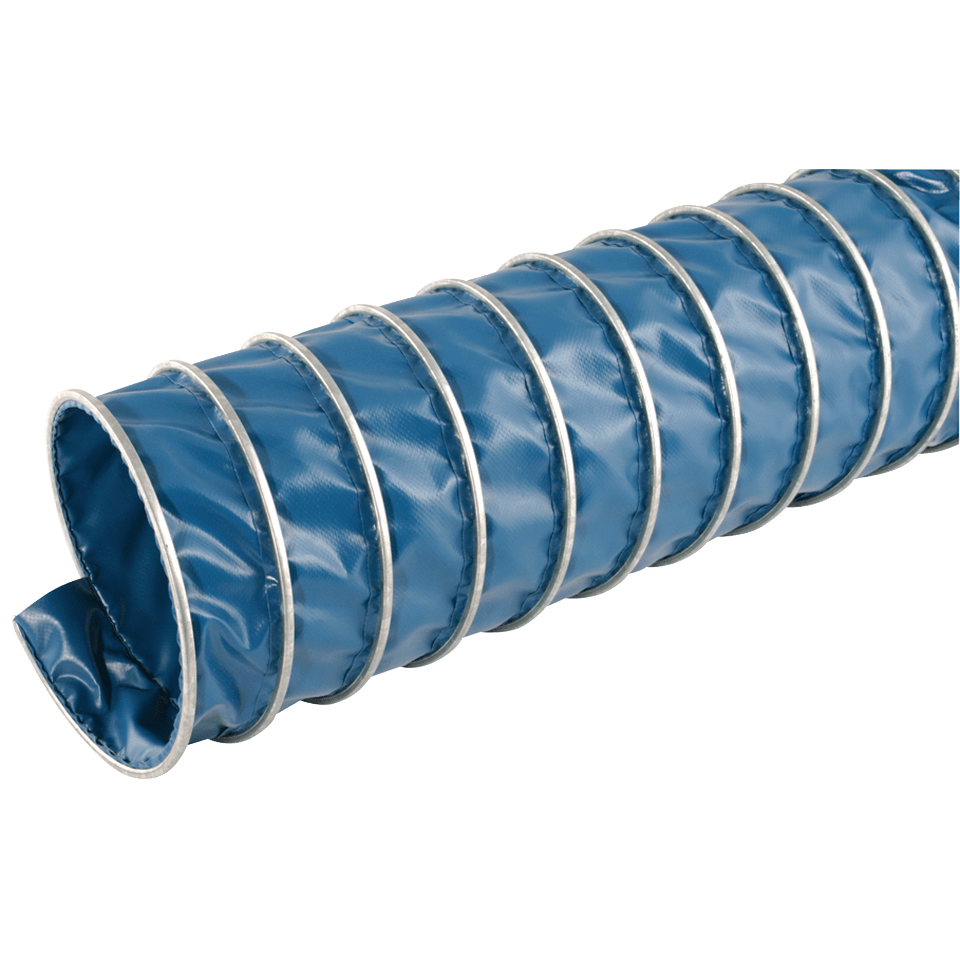

Suction and Blower Hose for Air Conditioning/ Ventilation

Hose, Tubing & Couplings Industrial Hose & PVC Ducting
10 Metre Coils
  • Technical specs
Part number Variation name Inside diameter mm Max gauge pressure in bar Vacuum in mm water Bend radius in mm Weight per kilogram
MASTERCLIPB-100 10 Metre Coils 100 0.51 800 60 0.6
MASTERCLIPB-125 10 Metre Coils 125 0.33 500 75 0.8
MASTERCLIPB-150 10 Metre Coils 150 0.22 360 90 0.9
MASTERCLIPB-160 10 Metre Coils 160 0.21 310 96 0.9
MASTERCLIPB-200 10 Metre Coils 200 0.148 200 120 1.2
MASTERCLIPB-225 10 Metre Coils 225 0.11 160 135 1.4
MASTERCLIPB-50 10 Metre Coils 50 0.9 3200 30 0.4
MASTERCLIPB-75 10 Metre Coils 75 0.62 1400 45 0.6
