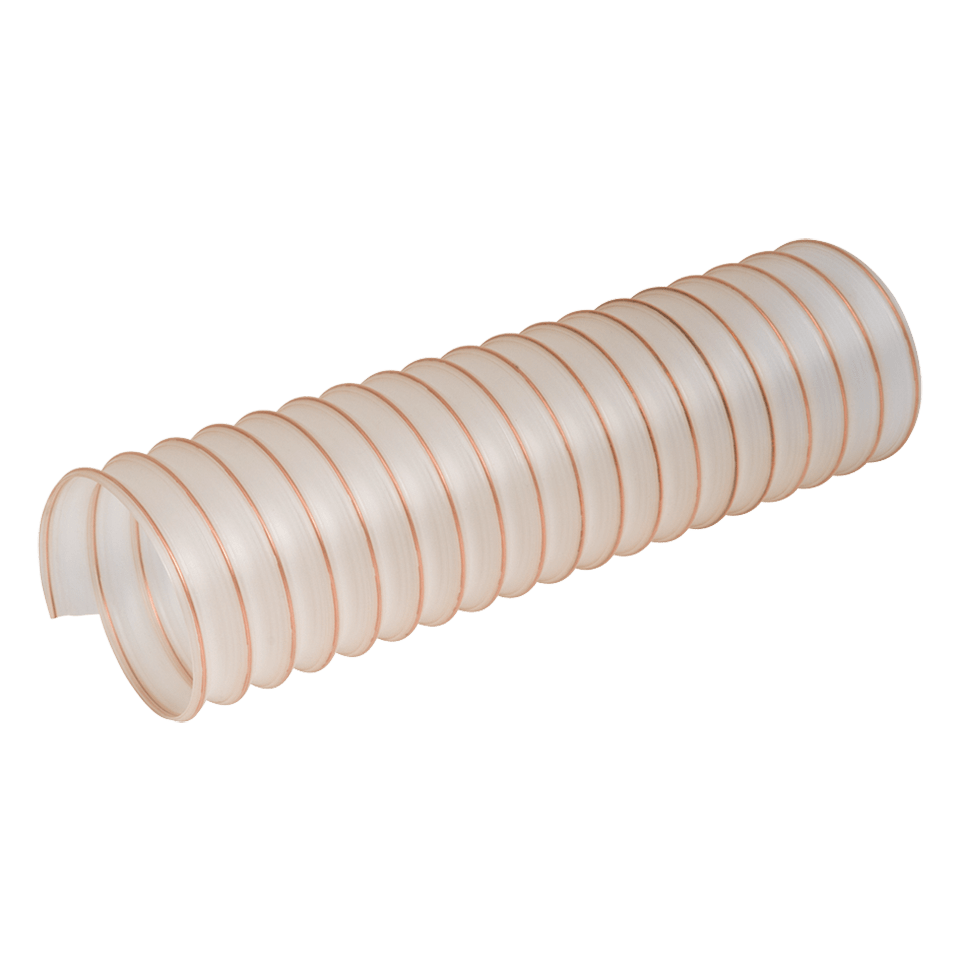

PROTAPE PUR 330 FOOD

Hose, Tubing & Couplings Food Grade PUR Ducting
Light/Medium Weight, 0.6mm Wall, Food Grade, 10 Metres
  • Technical specs
Part number Variation name Inside diameter mm Outside diameter in mm Max gauge pressure in bar Vacuum level in bar Weight per kilogram
330-0038-0000 Light/Medium Weight, 0.6mm Wall, Food Grade, 10 Metres 38 45 1.075 0.355 0.220
330-0050-0000 Light/Medium Weight, 0.6mm Wall, Food Grade, 10 Metres 50 58 0.820 0.220 0.370
330-0065-0000 Light/Medium Weight, 0.6mm Wall, Food Grade, 10 Metres 65 73 0.635 0.165 0.460
330-0075-0000 Light/Medium Weight, 0.6mm Wall, Food Grade, 10 Metres 75 83 0.550 0.145 0.530
330-0100-0000 Light/Medium Weight, 0.6mm Wall, Food Grade, 10 Metres 100 108 0.415 0.080 0.670
330-0125-0000 Light/Medium Weight, 0.6mm Wall, Food Grade, 10 Metres 125 133 0.335 0.065 0.830
330-0150-0000 Light/Medium Weight, 0.6mm Wall, Food Grade, 10 Metres 150 158 0.275 0.055 0.990
330-0200-0000 Light/Medium Weight, 0.6mm Wall, Food Grade, 10 Metres 200 208 0.210 0.030 1.330
